Place of Origin:
Guangdong, China
Brand Name:
YouNatural
Certification:
UL1973,IEC62619,UN38.3,UN3536
Model Number:
YNT20D
Contact Us
Video
Video
Features

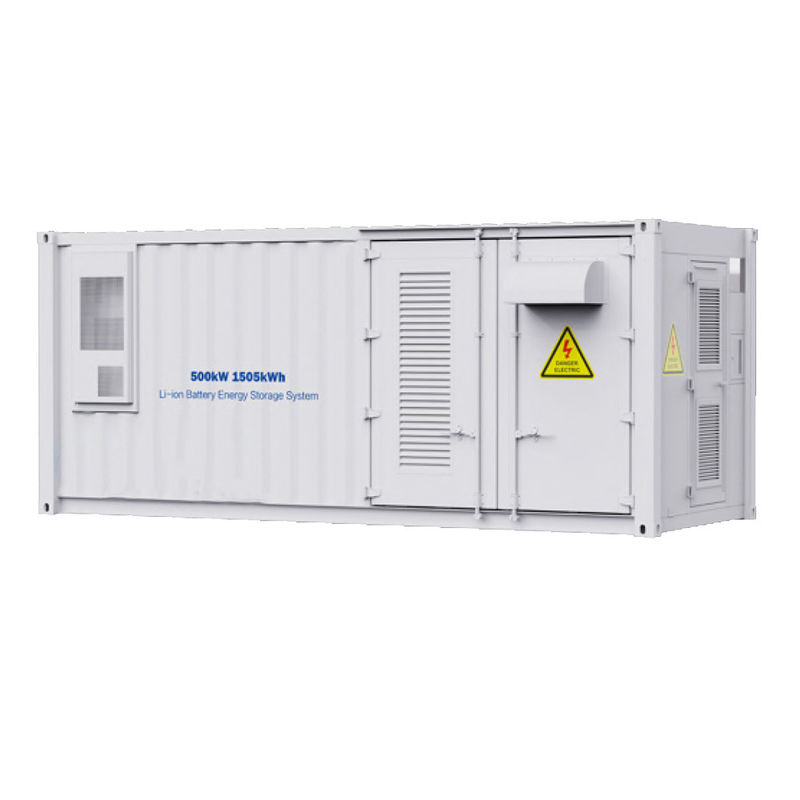

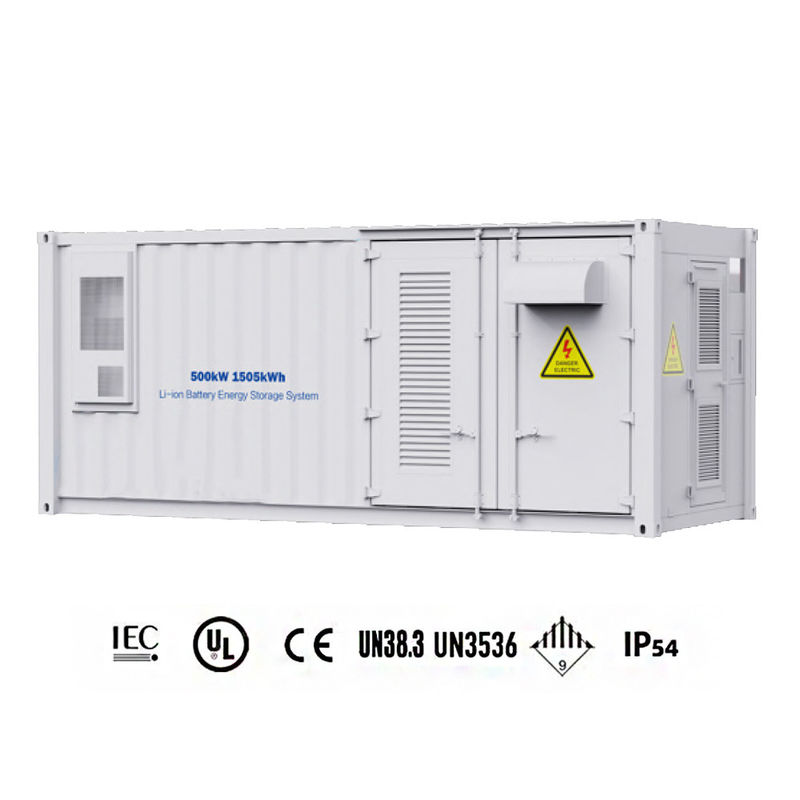

The Energy Storage Container YNT20D is designed for customer application with power and capacity requirements of 500kW/1505kWh. It is suitable for integrating solar assets for providing behind-the-meter applications, e.g. peak-shaving, backup power, micro-grid, and other ancillary services. It is housed in a standard 20ft high cube ISO container.
● Modular design, power can be flexibly configured on demand;
● Using high-power battery modules, improve power density;
● IP54 protection grade design, strong environmental applicability;
● Support on-grid working modes, support off-grid working mode(need external isolation transformer), meet the needs of different scenarios;
● Using own-developed mature BMS, with multiple protection functions, advanced active equalization algorithm, automatic calibration algorithm, etc;
● Complete life cycle monitoring and recording of the battery system;
● Advanced temperature simulation technology to ensure the consistency of battery cell operating temperature and increase battery life;
● The working status of the system can be viewed in real-time through the monitor platform webpage or mobile APP, and the fault warning information can get in advance;
● The charging and discharging period can be set according to the needs, and the peak shaving and valley filling function can be completed, saving electricity bills.
Specification
| Model:500kW/1505kWh | Specification | |
| AC Parameters | Rated power | 550kW |
| Max. power | 550kW | |
| Rated current | 720A | |
| AC Max. current | 792A | |
| THDi | <3% | |
| Rated voltage | 400VAC | |
| Voltage range | 360~440V (utility-interactive mode) | |
| Rated frequency | 50Hz/60Hz | |
| AC PF | 0.1~1 leading or lagging | |
| Isolation | Non-isolation(Isolation transformer is optional) | |
| Wire type | 3P4W+PE | |
| DC Parameters | Battery cell type | LFP, 3.2V/280Ah |
| Nominal energy (BOL) | 1505kWh | |
| Nominal voltage | 768VDC | |
| Battery voltage range | 648~840VDC | |
| Charging /Discharging mode | CP | |
| Other Parameters | Degree of protection | IP54 |
| Operation temperature | -20～+45℃ | |
| Storage temperature | -30～+50℃ | |
| Altitude | ≤2000m | |
| Relative humidity | 5%~95% (No condensing) | |
| Cooling | Independent temperature control,air- conditioning cooling | |
| Fire suppression system | FM-200 (Novec 1230 optional) | |
| Communication | MODBUS | |
| Dimension(W*D*H) | 6096*2438*2591mm | |
| Weight | 23T | |
| Certification | UL1973, IEC62619,UN38.3, UN3536 | |
Product display
Application topology
About US
Battery pack manufacturing facility
With the developement of economy, more and more people would like customized battery packs to meet their demand. Small quantity,fast delivery brings huge challenge to flexible production. We keep several semi-automatic production lines for small orders, protypes and samples. We also have a fully-automatic production line for standard on-shelf batteries.
An Innovative Manufacturer and Trusted Partner
Located in Maryland, USA and Shanghai, China, we are committed to promoting the development of green new energy. We have more than 20 years’ industry experience and professional technicians, dedicated to providing customized energy storage system solutions. We are mainly engaged in lithium-ion battery product series: single cell lithium-ion, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, etc.
|
|||
| Top Service | High Quality | OEM/ODM Customized | After Sales |
| We will test all products and send test videos or pictures to customer for confirmation. | Our products have obtained UL, CE, UN38.3, MSDS, IEC and other international certifications. |
More than 20 years industry experience, provide customized energy storage system
solutions.
|
We are committed to providing you with high-quality, reliable products and services. |
FAQ
1: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
2: What can you buy from us?
A: lithium-ion single cell, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, portable energy storage power system, etc.
3: Can you have a sample order?
A: Yes, we welcome sample order to test and check quality.
4: What about the lead time?
A: Sample needs 10-15 days, mass production time needs 5-8 weeks, it depends on order quantity.
5: How about you payment and delivery items?
A: Payment items: By T/T, 50% for deposit, and balance all before shipment. For small amount, we also accept payment via PayPal, Western Union.
6: What kind of certificates could you provide for these batteries?
A: We have CE,CB,KC,MSDS,UN38.3 for most our current products, if It's custom-making design, usually no current certificates, we could apply for you if you need, but the related fees should be paid by your side, and if your order is big enough, certificate fees can be refunded.
Send your inquiry directly to us
