Place of Origin:
Guangdong, China
Brand Name:
YouNatural
Certification:
CE,FCC,ROHS,UN38.3
Model Number:
YNT-JT5000WP3
Contact Us
A Stackable Battery System can be a great option for who want to increase their energy storage capacity over time and customize their energy storage system to meet their specific needs. They can help to increase energy independence, reduce reliance on the grid, and provide backup power during power outages.

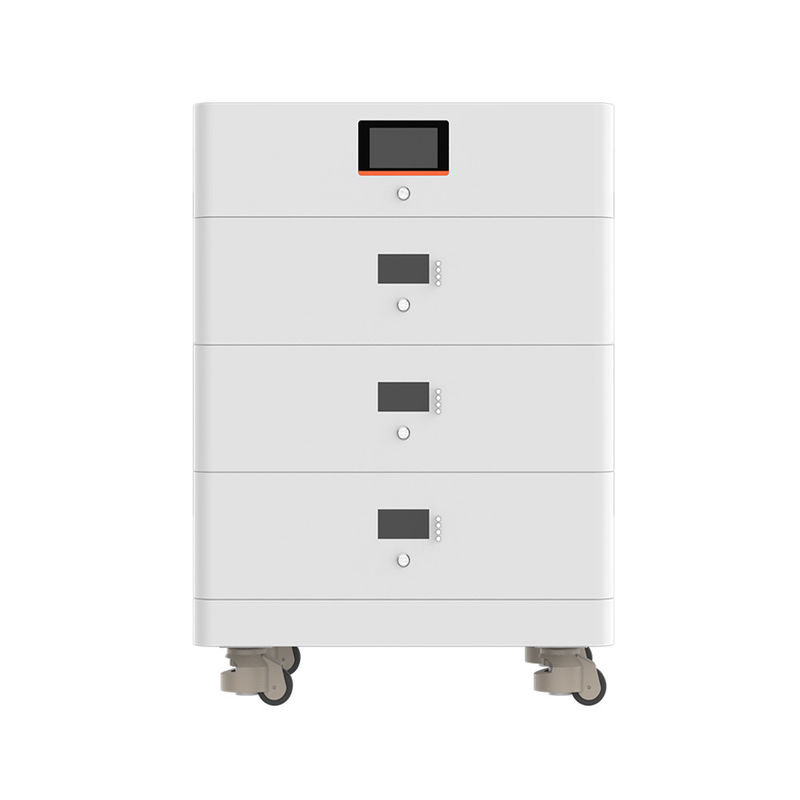

Stackable Battery System LiFePO4 10kWh 15kWh20kWh 25kWh30kWh 30kWh Battery vertical Cabinet:
A.One Module 5KWH 51.2V 100AH LiFePO4 Battery , 2pcs Stackable modules in parallel will get 10KWH,3PCS Stackable modules in parallel will get 15KWH...unit max each cabinet contains 7pcs( 35kwh).
B. Battery Support smart communication function RS485/ CANbus,bulit in MPPT .
C. Built in LCD display, ON/OFF Switch, Handles,bracket.
Specification
| Type/Parameter | YNT-JT5000WP3 |
| Battery Module Type | YNT-JT5000W |
| Module Number | 3 |
| Rated Voltage (V) | 51.2 |
| Rated Capacity(Ah) | 100 |
| Voltage Range (V) | 44.8-56 |
| Rated Energy (Wh ) | 15360 |
| Standard Discharge Current (A) | 150 |
| Single-phase hybrid inverter | |
| EPS Rated power (W) | 5500 |
| AC output voltag (V) | 100-240 |
| PV Max. power (W) | 6000 |
| MPPT voltage range (V) | 160~450 |
| Output frequency (Hz) | 50Hz/60Hz |
| Display | 4.3 inch touch IPS LCD |
| Physical Parameter | |
| Dimension:(L*W*H) | 580*500*692 |
| Weight (kg) | 168 |
| IP | IP55 |
| Charge Temperature Range (C) | 0~45 |
| Discharge Temperature Range (C) | -20-60 |
| Installation Method | Floor-mount |
| Service Life | |
| Cycle Life | ＞6000 (0.5C @25 C, 80% DOD ) |
| Design Life (Year) | 15 |
| Certification | |
| Safety & Certification | CE,FCC, ROHS |
| Transportation | UN38.3 |
Product display
Certifications
About US
An Innovative Manufacturer and Trusted Partner
Located in Maryland, USA and Shanghai, China, we are committed to promoting the development of green new energy. We have more than 20 years’ industry experience and professional technicians, dedicated to providing customized energy storage system solutions. We are mainly engaged in lithium-ion battery product series: single cell lithium-ion, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, etc.
|
|||
| Top Service | High Quality | OEM/ODM Customized | After Sales |
| We will test all products and send test videos or pictures to customer for confirmation. | Our products have obtained UL, CE, UN38.3, MSDS, IEC and other international certifications. |
More than 20 years industry experience, provide customized energy storage system
solutions.
|
We are committed to providing you with high-quality, reliable products and services. |
FAQ
1: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
2: What can you buy from us?
A: lithium-ion single cell, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, portable energy storage power system, etc.
3: Can you have a sample order?
A: Yes, we welcome sample order to test and check quality.
4: What about the lead time?
A: Sample needs 10-15 days, mass production time needs 5-8 weeks, it depends on order quantity.
5: How about you payment and delivery items?
A: Payment items: By T/T, 50% for deposit, and balance all before shipment. For small amount, we also accept payment via PayPal, Western Union.
6: What kind of certificates could you provide for these batteries?
A: We have CE,CB,KC,MSDS,UN38.3 for most our current products, if It's custom-making design, usually no current certificates, we could apply for you if you need, but the related fees should be paid by your side, and if your order is big enough, certificate fees can be refunded.
