Place of Origin:
CHINA
Brand Name:
YouNatural
Certification:
UL1973, IEC62619,UN38.3, UN3536
Model Number:
YNT500-380-1290&3801560EC
Contact Us
Video
Video

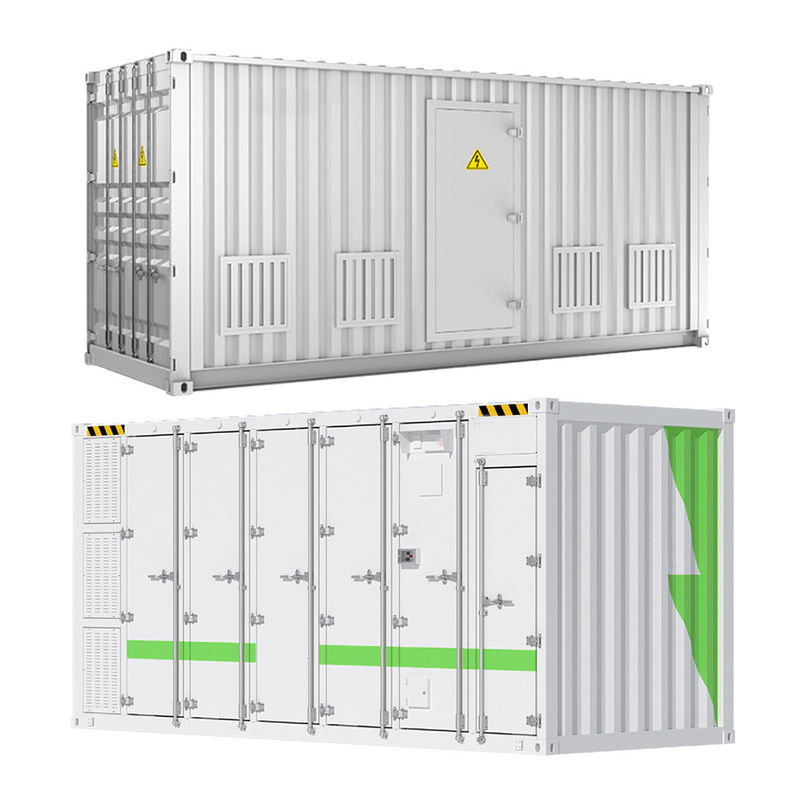

The Battery Energy Storage System is a Containerized Energy Storage System (ESS) that offers a reliable and cost-effective energy storage solution. It features a fire alarm, CAN and RS485 communication, a 51.2V210Ah battery module model, external maintenance, and supports 50/60Hz frequency. This Energy Storage System (ESS) is designed to store energy and provide a reliable and efficient power supply for various applications. With its superior performance and advanced features, the Energy Storage Container is the perfect choice for any energy storage need. It is a reliable and cost-effective energy storage solution that helps to maximize the efficiency of any energy storage system.
| Model | YNT500-380-1290 | YNT500-3801560EC |
| Rated output power | 500KW | 500KW |
| Rated grid voltage | 380/400/415V | 380/400/415V |
| lnput voltage range | 320~460VAC | 320~460VAc |
| Output voltage range | 380/400/415VAC | 380/400/415VAC |
| Frequency | 50/60Hz | 50/60Hz |
| AC pattern | 3W+N+PE | 3W+N+PE |
| Grid switching time | <20ms | <20ms |
| System voltage | 768 | 768 |
| Battery module model | 51.2V210Ah | 51.2V340Ah |
| Battery cluster capacity | 161.3AH | 261AH |
| No.of paraleled clusters | 8 | 6 |
| EMS | Yes | Yes |
| Dry pipe fire extinguishing | Yes | NO |
| Fire alarm | Yes | Yes |
| Fire extinguishing | Yes | Yes |
| HVAC | Yes | Yes |
| Access control | Yes | Yes |
| Remote contrdl | Yes | Yes |
| Peak-valley calculation | Yes | Yes |
| Communication | CAN,RS485 | CAN,RS485 |
| Protection value | IP54 | IP54 |
| Pcs unit coolng | Forced air | Forced air |
| Working temperature | -30~55℃ | -30~55℃ |
| Maintenance | External maintenance | External maintenance |
| Dimension | 6058*2400*2900(20ft) | 6058*2400*2900(20ft) |
| Weight | 24ton | 24ton |
YouNatural Battery Energy Storage System is an ess energy storage system that is 20ft in dimension and weighs up to 24MT. It is designed with a EMS management system and advanced communication protocol such as CAN and RS485. It is certified with UL1973, IEC62619, UN38.3, and UN3536, and is available for a minimum order quantity of 1 set at a negotiable price with a delivery time of negotiation. Payment terms include L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, and MoneyGram. It has a supply ability of 500 Set/Sets per Month, and is designed to operate with a rated grid voltage of 380/400/415V.
We provide technical support and service for our Energy Storage Container. Our service team is available 24 hours a day, 7 days a week, and can be contacted via telephone, email, or our online support portal.
We provide a variety of service options to meet your needs. Our technical support team can provide troubleshooting assistance, install and configure the product, and provide general maintenance and upgrade services. We also provide full system diagnostics, software updates, and product maintenance and repair services.
We are committed to providing the highest level of service and support for our products. Please do not hesitate to contact us for any assistance you may require.
A1: YouNatural's Battery Energy Storage System is a device used for storing electrical energy. It is certified by UL1973, IEC62619, UN38.3 and UN3536, and is capable of providing a reliable and long-lasting source of energy for your home or business.
A2: The model number of YouNatural's Battery Energy Storage System is YNT.
A3: YouNatural's Battery Energy Storage System is manufactured in China.
A4: The minimum order quantity for YouNatural's Battery Energy Storage System is 1 set.
A5: The payment terms for YouNatural's Battery Energy Storage System are L/C, D/A, D/A, D/P, T/T, Western Union, Western Union and MoneyGram.
