Place of Origin:
CHINA
Brand Name:
YouNatural
Certification:
UL1973, IEC62619,UN38.3, UN3536
Model Number:
YNTYNT500-380-1290&4801032UG
Contact Us
Video
Video
| Model | YNT500-380-1290 | YNT500-4801032UG |
| Rated output power | 500KW | 500KW |
| Rated grid voltage | 380/400/415V | 480V |
| lnput voltage range | 320~460VAC | 432~5280VAC |
| Output voltage range | 380/400/415VAC | 480VAC |
| Frequency | 50/60Hz | 50/60HZ |
| AC pattern | 3W+N+PE | 3W+N+PE |
| Grid switching time | <20ms | <20ms |
| System voltage | 768 | 810 |
| Battery module model | 51.2V210Ah | 51.2V210Ah |
| Battery cluster capacity | 161.3AH | 172 |
| No.of paraleled clusters | 8 | 6 |
| EMS | Yes | Yes |
| Dry pipe fire extinguishing | Yes | NO |
| Fire alarm | Yes | Yes |
| Fire extinguishing | Yes | Yes |
| HVAC | Yes | Yes |
| Access control | Yes | Yes |
| Remote contrdl | Yes | Yes |
| Peak-valley calculation | Yes | Yes |
| Communication | CAN,RS485 | CAN,RS485 |
| Protection value | IP54 | IP54 |
| Pcs unit coolng | Forced air | Forced air |
| Working temperature | -30~55℃ | -30~55℃ |
| Maintenance | External maintenance | External maintenance |
| Dimension | 6058*2400*2900(20ft) | 6058*2400*2900(20ft) |
| Weight MT | 24ton | 24ton |

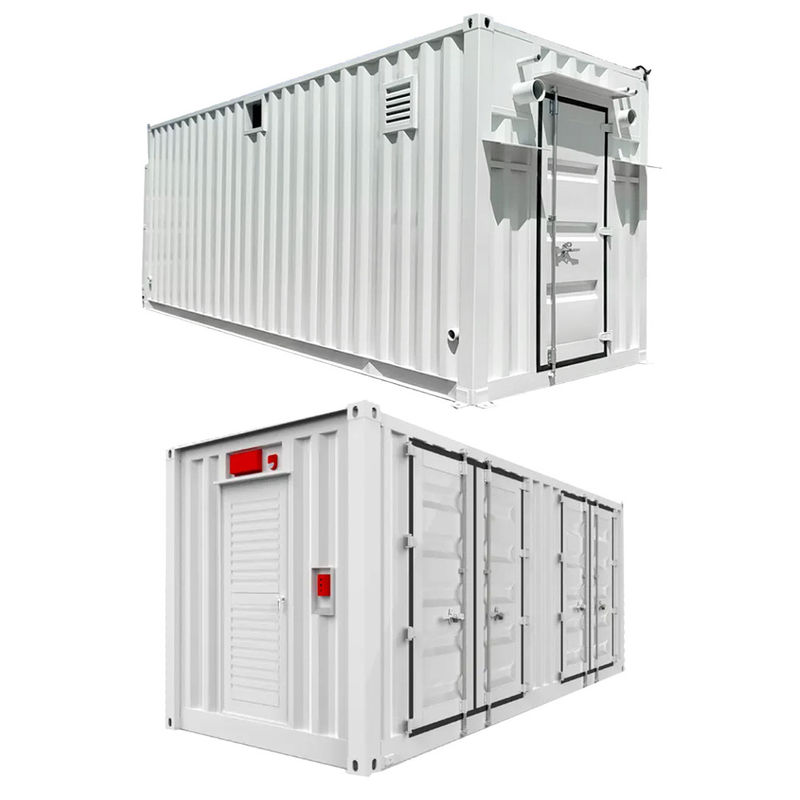

The YouNatural YNT Energy Storage Container is an innovative containerized battery system that provides reliable, long-lasting energy storage. This Energy Storage Container has been certified to UL1973, IEC62619, UN38.3, and UN3536 standards, ensuring the highest quality and safety. This system is capable of storing up to 500 sets/sets per month, and weighs 24 MT. It features external maintenance, a 380/400/415V rated grid voltage, and an EMS management system for improved performance. It boasts a cycle life of over 4000, and is one of the most reliable and efficient energy storage containers on the market today.
The YouNatural YNT Energy Storage Container is available with a minimum order quantity of 1 unit, and pricing is negotiable. Delivery time and payment terms are also negotiable, and accepted payment options include L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, and MoneyGram.
We are proud to provide our customers with technical support and service for our Energy Storage Container. Our team of experienced professionals is here to help you troubleshoot any issues you may have with our product.
We provide free troubleshooting advice and assistance via email, phone, or live chat. Additionally, we offer a comprehensive library of user manuals, FAQs, and other resources to help with setup and maintenance.
If you need more help, we also offer paid support packages. Our basic support package includes installation and setup assistance, as well as personalized maintenance and troubleshooting advice.
For further questions or issues, please feel free to contact our customer service team at any time.
