Place of Origin:
CHINA
Brand Name:
YouNatural
Certification:
UL1973, IEC62619,UN38.3, UN3536
Model Number:
YNT500-380-1350&3801560EC
Contact Us
Video
Video

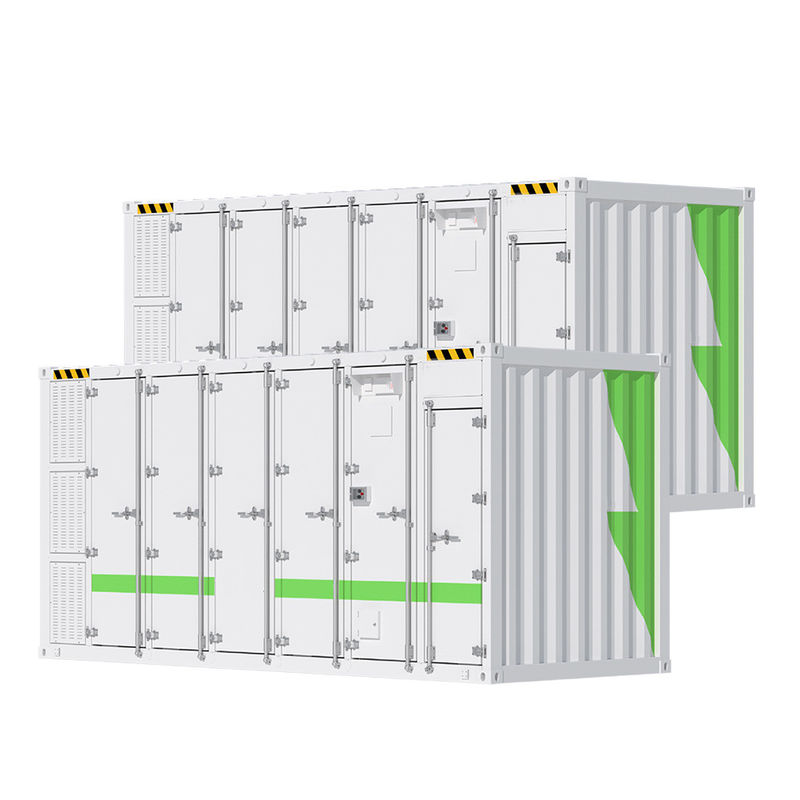

Introducing the energy storage system – an efficient way to store energy. This containerized energy storage system, or ESS Container, provides an easy and cost-effective way to store energy. The energy storage ess is rated for 380/400/415V and features an ultra-fast switching time of less than 20ms, fire alarm, and IP54 protection value. The weight of the container is 24 MT.
The energy storage container is perfect for businesses and residential areas who require a safe and secure storage solution for their electrical energy. The containerized energy storage system is designed for maximum efficiency and maximum power output. It is the perfect solution for those who need to store energy in order to reduce costs and increase efficiency.
If you are looking for a reliable and cost-effective energy storage system, the energy storage container is the perfect choice. It is designed to provide superior performance, long-term reliability, and a safe and secure storage solution for your energy. Invest in the energy storage container today and start saving on energy costs and maximizing efficiency.
The 500 kWh battery bank storage also has environmental benefits, as it can significantly reduce the carbon footprint. By utilizing renewable energy sources like solar power rather than relying on nonrenewable energy sources, this innovative system takes a step towards a cleaner, more energy-efficient future.
Furthermore, the 500 kWh battery bank storage system is built for durability and reliability. It's designed using modern battery technologies with built-in safety features like short circuit and overcharge protection that prevent any accidents or failures.
| Model | YNT500-380-1350 | YNT500-3801560EC |
| Rated output power | 500KW | 500KW |
| Rated grid voltage | 380/400/415V | 380/400/415V |
| lnput voltage range | 320~460VAC | 320~460VAc |
| Output voltage range | 380/400/415VAC | 380/400/415VAC |
| Frequency | 50/60Hz | 50/60Hz |
| AC pattern | 3W+N+PE | 3W+N+PE |
| Grid switching time | <20ms | <20ms |
| System voltage | 810 | 768 |
| Battery module model | 51.2V210Ah | 51.2V340Ah |
| Battery cluster capacity | 172AH | 261AH |
| No.of paraleled clusters | 8 | 6 |
| EMS | Yes | Yes |
| Dry pipe fire extinguishing | Yes | NO |
| Fire alarm | Yes | Yes |
| Fire extinguishing | Yes | Yes |
| HVAC | Yes | Yes |
| Access control | Yes | Yes |
| Remote contrdl | Yes | Yes |
| Peak-valley calculation | Yes | Yes |
| Communication | CAN,RS485 | CAN,RS485 |
| Protection value | IP54 | IP54 |
| Pcs unit coolng | Forced air | Forced air |
| Working temperature | -30~55℃ | -30~55℃ |
| Maintenance | External maintenance | External maintenance |
| Dimension | 6058*2400*2900(20ft) | 6058*2400*2900(20ft) |
| Weight | 26ton | 24ton |
YouNatural energy storage system is an industrial commercial ESS energy storage system that is certified with UL1973, IEC62619,UN38.3, UN3536. The minimum order quantity is 1 and the price is negotiable. The delivery time and payment terms are also negotiable, and the accepted payment methods include L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, MoneyGram. The supply ability is 500 Set/Sets per Month and has a >4000 cycles. This ESS has a weight of 24 MT and requires external maintenance. It has a battery module model of 51.2V210Ah and communication protocol of CAN,RS485.
We are committed to providing exceptional technical support and service for our Energy Storage Container products. Our team of highly-trained engineers is available to answer any of your questions and provide troubleshooting steps. We also have a wide range of online resources to assist you, including product manuals, FAQs, and instructional videos.
For more complex issues, our engineers are available to provide remote assistance. We also offer on-site service and maintenance for customers who require more intensive support. Our technicians are certified and experienced in servicing Energy Storage Container products.
We understand the importance of your investments in our products, and we are here to ensure you get the most out of them. If you have any questions or would like to learn more about our products and services, please feel free to contact us.
