Place of Origin:
China
Brand Name:
YouNatural
Certification:
IEC，UL，CE，UN39.3，UN3536，IP54
Model Number:
YNT30&100
Contact Us

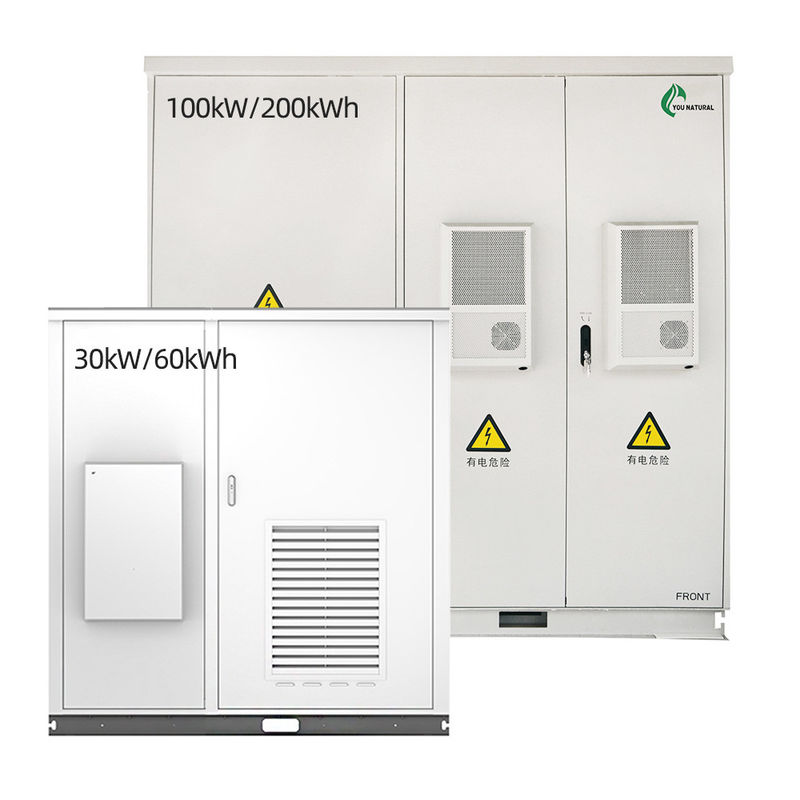

The Energy Storage Cabinet is designed for customer applications with specific power and capacity requirements. It adopted an all-in-one integration concept, meaning that lithium-ion phosphate battery, BMS, PCS, EMS, air conditioning, fire system and other equipment have been integrated into the outdoor cabinet ESS. Its small size, space-saving capacity and ease of place benefit the work at the installation site immensely and help minimize the integrator's difficulty.
The cabinet offers advanced thermal simulation technology in order to maintain consistency of the battery's operating temperature which in turn helps to increase its life. Additionally, it has an IP54 protection grade design which indicates strong environmental applicability. Moreover, the integrated BMS comes with multiple protection systems and equalization functions which help maintain the battery's balance.
The Energy Storage Cabinet boasts a high power density with a small footprint. The shape and size of the cabinet facilitate peak shaving and valley filling functions while saving your electricity bills. The users use a website or a mobile app to check the system's working status in real-time, as well as receive warning in case something is wrong. Additionally, it allows users to adjust the charging and discharging period according to their needs.
| Install | ||
| Type/Parameter | 30kW/60kWh | 100kW/200kWh |
| Cabinets(W*D*H) | 2400*1100*2450 | 2700*1100*2550 |
| Air conditioning capacity | 1kW | 3kw |
| Battery part | ||
| Battery Cell(Ah) | 102 | 280 |
| PACK | 1P16S | 1P16S |
| PACK(KWh) | 5.2224 | 14.336 |
| PACK(W*D*H) | 468*550*160 | 495*700*230 |
| PCS | ||
| Photostamper size(W*D*H) | 800*800*1900 | 1200*800*2050 |
| Single battery | ||
| Number of packs per cluster | 12 | 14 |
| Single-cluster nominal voltage(LFP3.2V) | 614.4 | 716.8 |
| Single-cluster voltage range (Cell Min2.8V~Max3.65V) |
537.6~700.8 | 627,2~817.6 |
| BMS | ||
| The number of battery clusters | 1 | 1 |
| PACK | 1P192S*1 | 1P224S*1 |
| BMS | 2 | 2 |
| Battery capacity(kW) | 62.6688 | 200.704 |
| Number of battery racks (7 layersrack) |
2 | 3 |
| PV | ||
| Pv capacity can be connected (kWp) |
60/120 | 120/180/240 |
| Actual access capacity(kWp) | 57.6 | 230.4 |
| Number of PV modules (600wp) | 96 | 384 |
| Combiner box model | in 1 out | 24 in 1 out |
| Number of busbar boxes | 1 | 1 |
YouNatural energy storage and distribution cabinet from China provides a reliable and safe solution for power storage and distribution. It is certified by IEC, UL, CE, UN39.3, UN3536 and IP54 and a minimum order quantity of 1 set is required. The price is negotiable, as well as the delivery time. Payment can be made via L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, MoneyGram. This product has a supply ability of 50 Set/Sets per Month and comes with rated power of 125kW~500kW, nominal voltage of 768 V, degree of protection IP54.
Brand Name: YouNatural
Place of Origin: China
Certification: IEC,UL,CE,UN39.3,UN3536,IP54
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: Negotiation
Payment Terms: L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, MoneyGram
Supply Ability: 50 Set/Sets per Month
Altitude: <2000m
Dimension(W*D*H): Battery Cabinet: 1200*850*2100mm PCS & Control Cabinet: 1850*1050*2350mm
Rated power: 30kW&100kW
Communication: RS485, Ethernet
Degree of Protection: IP54
Our Energy Storage Cabinet enables you to store electricity for later use. This power reserve cabinet is designed to store and manage the electricity reserve, providing you with a reliable and flexible source of energy. With a safe and secure design, this electricity reserve cabinet features a degree of protection of IP54, and is certified by IEC, UL, CE, UN39.3, UN3536 and others. It can be installed at an altitude of less than 2000m and is available in various sizes and power ratings.
Specifications:
- Rated power: 125kW~500kW
- Communication: RS485, Ethernet
- Dimension(W*D*H): 2400*1100*2450 & 2700*1100*2550mm
- Degree of Protection: IP54
For more information about our Energy Storage Cabinet, please contact us today!
We offer comprehensive technical support and service for our Energy Storage Cabinets. Our technical support team is available to answer any questions you may have about installation, troubleshooting, and operation.
We offer on-site installation and service for our Energy Storage Cabinets. Our technicians will ensure that your Energy Storage Cabinet is properly installed and in working order. We also offer periodic maintenance and repair services.
For customers who prefer to install and service their Energy Storage Cabinets on their own, we offer detailed user manuals and instructional videos. Our user manuals contain step-by-step instructions on how to install and operate the Energy Storage Cabinet.
We also offer remote support via phone, email, and live chat. Our technical support team is available to answer any questions you may have about installation, troubleshooting, and operation.
If you have any questions or concerns about our Energy Storage Cabinet technical support and service, please do not hesitate to contact us.
A: The brand name is YouNatural.
A: It is from China.
A: It has IEC, UL, CE, UN39.3, UN3536, IP54 certifications.
A: The minimum order quantity is 1.
A: The price is negotiable, please contact us for details.
