Place of Origin:
China
Brand Name:
YouNatural
Certification:
IEC，UL，CE，UN39.3，UN3536，IP54
Model Number:
YNT125&250kW
Contact Us

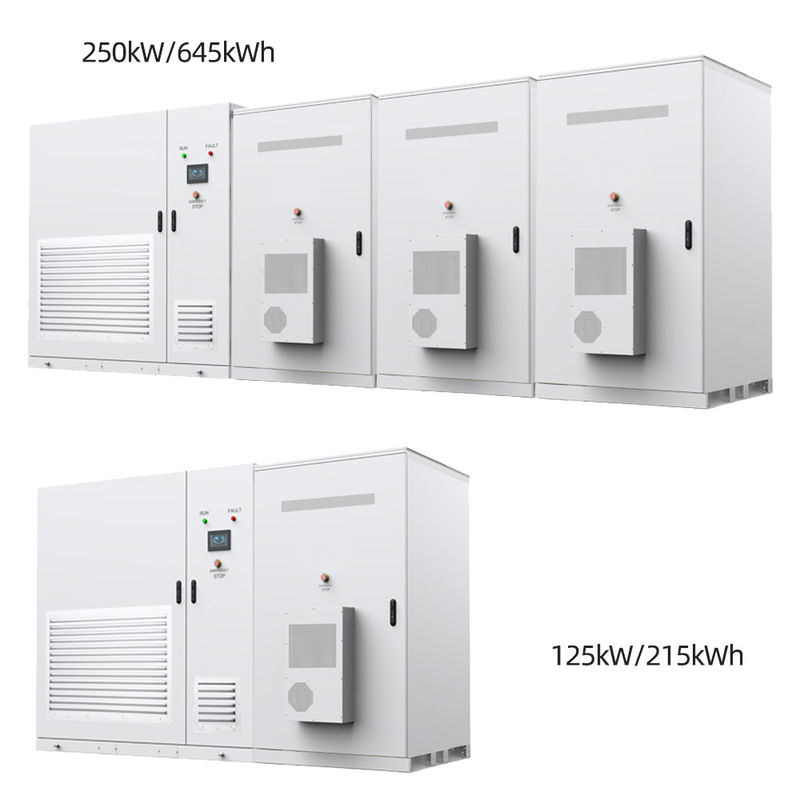

YNT215A and YNT645A is the perfect solution for customers with power and capacity requirements of 125kW/215kWh and 250kW/645kWh. This product has been designed with an integrated concept that provides great application flexibility and exceptional environmental durability. It is especially suitable for applications with limited space and logistics.
YNT215A and YNT645A is user-friendly and efficient - ideal for customer projects with power and capacity requirements of 125kW/215kWh and 250kW/645kWh. It is an all-in-one solution that offers superior flexibility, environmental robustness, and a compact size that facilitates even the most stringent logistic restraints.
Our system is designed to be easy for positioning and wiring, plug and play. Advanced thermal simulation technology is included to ensure the consistency of battery cell operating temperature while increasing battery life. Also built-in BMS, multiple protections, and equalization function are features that significantly improve battery consistency. With IP54 protection grade design, our system is strong in terms of environmental applicability. The charging and discharging period can be set according to the needs, making it possible to complete peak shaving and valley filling functions, thus saving your electricity bills. Finally, you can view the system's work status in real-time via the monitor platform webpage or mobile APP. Additionally, you will also receive fault warning information in advance.
| Model | 125kW/215kWh | 250kW/645kWh |
| Battery Cell Type | LFP, 280Ah | LFP, 280Ah |
| Rate Power | 125kW | 250kW |
| Nominal Energy (BOL) | 215kWh | 645kWh |
| Degree of Protection | IP54 | IP54 |
| Altitude | <2000m | <2000m |
| Fire Suppression System | FM-200 (Novec 1230 optional) | FM-200 (Novec 1230 optional) |
| Communication | RS485, Ethernet | RS485, Ethernet |
| Dimension (W*D*H) | Battery cabinet: 1200*850*2100mm PCS & control cabinet: 1850*1050*2350mm |
Battery cabinet: 1200*850*2100mm*3 PCS & control cabinet: 1850*1050*2350mm |
| Weight | Battery cabinet: 1.8T PCS & control cabinet: 0.8T | Battery cabinet: 1.8T*3 PCS & control cabinet: 0.9T |
YouNatural Energy Storage Cabinet is a reliable electricity supply unit for both home and commercial applications. It is equipped with advanced battery solar energy storage cabinet battery, which can store up to 100Ah of lithium iron phosphate (LFP) and provide a maximum rate power of XXkW and a total harmonic distortion index (THDI) of less than 3%. It is also designed with a storage temperature range of -30℃ to +55℃ for long-term stability and reliability.
The Energy Storage Cabinet is certified by IEC, UL, CE, UN39.3, UN3536, and IP54. It is made by the highest standards and comes with a minimum order quantity of 1 and a weight of 850kg. The price and delivery time are negotiable and payment terms can be L/C, D/A, D/P, T/T, Western Union, or MoneyGram. YouNatural provides a monthly supply of up to 50 sets.
Brand Name: YouNatural
Place of Origin: China
Certification: IEC,UL,CE,UN39.3,UN3536,IP54
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: Negotiation
Payment Terms: L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, MoneyGram
Supply Ability: 50 Set/Sets per Month
Battery Cell Type: LFP, 100Ah
Degree of Protection: IP54
Keywords:battery solar energy storage cabinet battery, Electricity Supply Cabinet, battery solar energy storage cabinet battery
The Energy Storage Cabinet is designed to provide the best in reliability, safety, and performance. We provide full technical support and service for the Energy Storage Cabinet.
We strive to provide the most comprehensive technical support for the Energy Storage Cabinet. Our team of experienced technicians can help you with any aspect of the cabinet, from installation to troubleshooting.
We offer a full range of maintenance and repair services for the Energy Storage Cabinet. Our technicians are trained to quickly diagnose and repair any issues that may arise.
