Place of Origin:
CHINA
Brand Name:
YouNatural
Certification:
UL1973, IEC62619,UN38.3, UN3536
Model Number:
YNTYNT500-380-1290
Contact Us
Video
Video

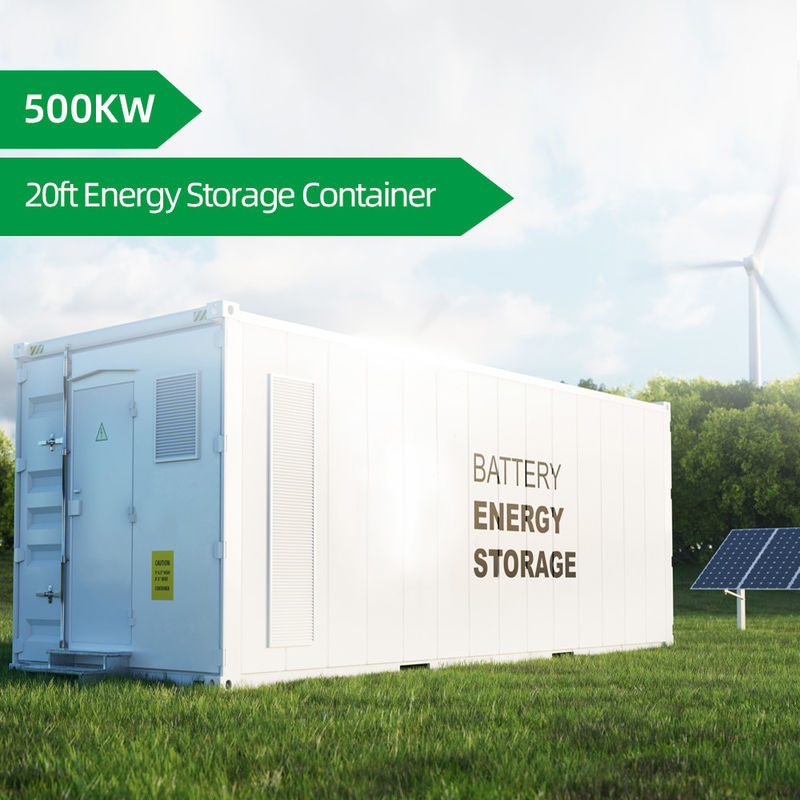

The Energy Storage Container is a complete solution for energy storage systems.
1,It's designed to provide reliable and high performance storage of energy for The system offers protection value of IP54, rated grid voltage of 380/400/415V, and a battery module model of 51.2V210Ah.
2, The battery cluster capacity is 161.3AH and it is equipped with HVAC for efficient cooling.
3,This complete containerized energy storage system is an ideal solution for any power system.
4,Its modular design makes it easy to install and maintain.
5,It can be used for a variety of applications, including grid storage, off-grid storage, and backup power.
6,It is an ideal choice for any energy storage system.
| Model | YNT500-380-1290 |
| Rated output power | 500KW |
| Rated grid voltage | 380/400/415V |
| lnput voltage range | 320~460VAC |
| Output voltage range | 380/400/415VAC |
| Frequency | 50/60Hz |
| AC pattern | 3W+N+PE |
| Grid switching time | <20ms |
| System voltage | 768 |
| Battery module model | 51.2V210Ah |
| Battery cluster capacity | 161.3AH |
| No.of paraleled clusters | 8 |
| EMS | Yes |
| Dry pipe fire extinguishing | Yes |
| Fire alarm | Yes |
| Fire alarm | Yes |
| HVAC | Yes |
| Access control | Yes |
| Remote contrdl | Yes |
| Peak-valley calculation | Yes |
| Communication | CAN,RS485 |
| Protection value | IP54 |
| Pcs unit coolng | Forced air |
| Working temperature | -30~55℃ |
| Maintenance | External maintenance |
| Dimension | 6058*2400*2900(20ft) |
| Weight MT | 24 |
YouNatural YNT Energy Storage Container is an ideal product for energy storage system (ESS). This container battery for ESS energy storage system is designed to provide an easy to install containerized energy storage system with high quality and safety standards. It comes with UL1973, IEC62619, UN38.3, UN3536 certifications and IP54 protection value. It is able to perform grid switching in less than 20ms and with forced air cooling for Pcs unit. It also provides remote control for user-friendly operation. The minimum order quantity of this energy storage container is 1 and the price is negotiable. With the supply ability up to 500 sets per month, YouNatural YNT Energy Storage Container is a perfect choice for energy storage system.
With our containerized energy storage system, you can achieve high power density and energy efficiency. It is also optimized for safety and maintenance. Contact us today to get a quote for your customized energy storage container.
Energy Storage Container Technical Support and Service
Packaging and Shipping for Energy Storage Container
The Energy Storage Containers must be packaged in a way that ensures they are not damaged during shipping. The following packaging and shipping guidelines must be followed when shipping Energy Storage Containers:
