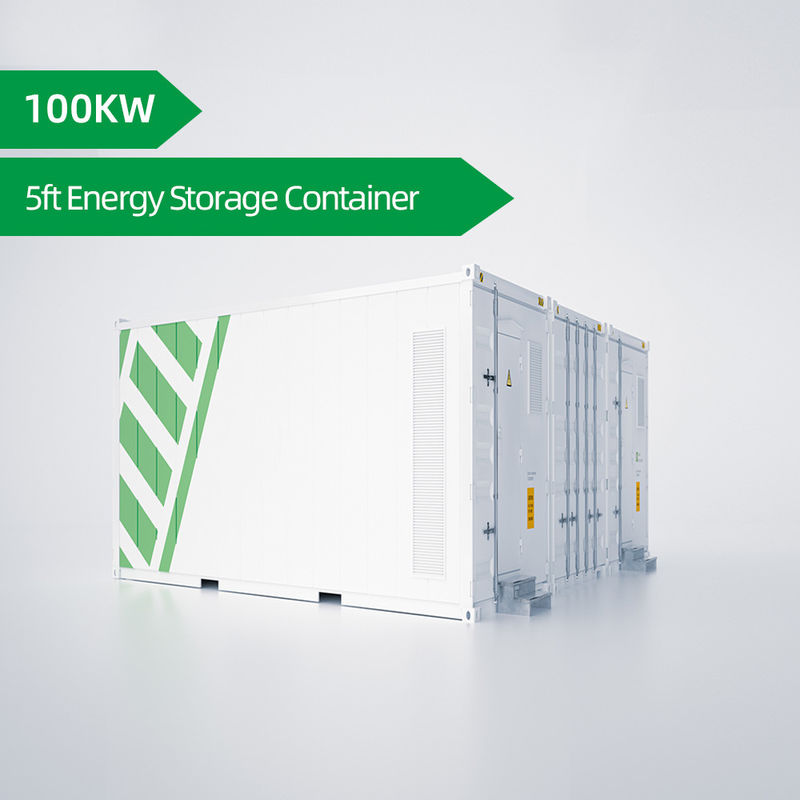

5ft Lithium Ion Outdoor Cabinet Type Energy Storage Container For Industrial And Commercial

5ft Lithium Ion Outdoor Cabinet Type Energy Storage Container For Industrial And Commercial

Lithium Ion Battery Energy Storage Cabinet

5ft Commercial Energy Storage Container

Industrial Container Energy Storage System 5ft

Place of Origin:

CHINA

Brand Name:

YouNatural

Certification:

UL1973, IEC62619,UN38.3, UN3536

Model Number:

YNT5ft

Contact Us

Request A Quote
Product Details
Product Name:
5ft Energy Storage Container
Rated Voltage(V):
716.8V
Rated Capacity(Ah):
340AH
Maximum Charge Voltage(V):
784(can Be Set)
Maximum Protected Charge Voltage (V):
822V
Minimum Protected Voltage( V):
616
Maximum Charge Current(A):
200
Nominal Charge Current (A):
150
Continual Discharge Current(A):
150
Single Battery Pack Dimension(mm):
483*800*220
Voltage Range( V DC):
600~900
Communication:
RS485、CAN
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Delivery Time
Negotiation
Payment Terms
L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, MoneyGram
Supply Ability
500 Set/Sets per Month
Product Description

Product Description:

Energy Storage Container is an ideal solution for solar energy system, renewable energy and battery energy storage system. This container is 2200*1400*2200mm(5ft), and it is equipped with forced air pcs unit cooling and IP54 protection value. Besides, it also provides access control and communication interface such as CAN and RS485.



Specification:

lnstall
container 5fit
Rated Voltage(V) 716.8V
Rated Capacity(Ah) 340AH
Maximum Charge Voltage(V) 784(can be set)
Maximum protected Charge Voltage (V) 822V
Minimum protected Voltage( V) 616
Maximum Charge Current(A) 200
Nominal Charge Current (A) 150
Continual Discharge Current(A) 150
Maximum Discharge Current (A) 250
Passive equalizing current (A) 0.1
container/Fire fighting system/Air conditioner 2200*1400*2200mm
Aerosol,Envicool
Weight(kg) 1960KG
Battery
Single Battery pack Dimension(mm) 483*800*220
Voltage Range( V DC) 600~900
Maximum charge current( A) 150
Communication RS485,CAN
AC Input
Rated Power(W ) 100000
Maximum Charge Current (A) 110
Power Factor 1
THDI <3%
Wire Type 3P+N+PE
PV Input
Maximum PV Voltage 1000VDC
PV rated power 100KW
Maximum PV Input Power 120KW
Maximum PV Input Current 720A
Number of MPPT routes 5 Routes
AC Output
Rated Power( W) 100KW
Rated output Frequency(HZ) 50/60

Applications:

YouNatural’s YNT5ft is a solar container energy storage system (ESS) that is used to store power generated from renewable energy sources, such as solar. It is also widely used as a container storage energy system in residential, commercial, and industrial applications. The YNT is certified to UL1973, IEC62619,UN38.3, UN3536 standards and features a minimum order quantity of one unit, with a price that is negotiable. Delivery time and payment terms are also negotiable. The YN5ftT offers rated output powers of 100kW. It is also equipped with a peak-valley calculation function and comes with communication protocols such as CAN and RS485. Its protection value is IP54.



Product Features:

Energy Storage Container
YouNatural YNT5ft
  • Brand Name: YouNatural
  • Model Number: YNT5ft
  • Place of Origin: CHINA
  • Certification: UL1973, IEC62619,UN38.3, UN3536
  • Minimum Order Quantity: 1
  • Price: Negotiation
  • Delivery Time: Negotiation
  • Payment Terms: L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, MoneyGram
  • EMS management system: Yes
  • Communication: CAN,RS485
  • Protection value: IP54
  • Working temperature: -30~55℃
Application:

YouNatural YNT5ft Energy Storage Container is a perfect battery energy storage system container for container ESS and container solar energy storage for industry.



Support and Services:

Technical Support and Service for Energy Storage Container

We offer technical support and service for our Energy Storage Container products. Our technical team is available for you 24/7, providing prompt and professional support. We also provide continuous maintenance and repair services for all our products.

Our technical support and service includes:

  • Assistance with product installation and setup
  • Troubleshooting and technical advice
  • Remote repair and maintenance services
  • Software updates and upgrades
  • Technical support documents and user manuals


Packing and Shipping:

Packaging and Shipping for Energy Storage Container

Energy Storage Container products are packaged and shipped in a manner that meets the requirements of international shipping regulations. The packaging is designed to protect the product from damage during transit.

FAQ:

Q1: How can we guarantee quality?
A1: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q2: What can you buy from us?
A2: lithium-ion single cell, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, portable energy storage power system, etc.
Q3: Can you have a sample order?
A3: Yes, we welcome sample order to test and check quality.
Q4: What about the lead time?
A4: Sample needs 10-15 days, mass production time needs 5-8 weeks, it depends on order quantity.
Q5: How about you payment and delivery items?
A5: Payment items: By T/T, 50% for deposit, and balance all before shipment. For small amount, we also accept payment via PayPal, Western Union.
Q6:What kind of certificates could you provide for these batteries?
A6:We have CE,CB,KC,MSDS,UN38.3 for most our current products, if It's custom-making design, usually no current certificates, we could apply for you if you need, but the related fees should be paid by your side, and if your order is big enough, certificate fees can be refunded.
