Place of Origin:
CHINA
Brand Name:
YouNatural
Certification:
UL1973, IEC62619,UN38.3, UN3536
Model Number:
YNTYNT20D
Contact Us
Video
Video

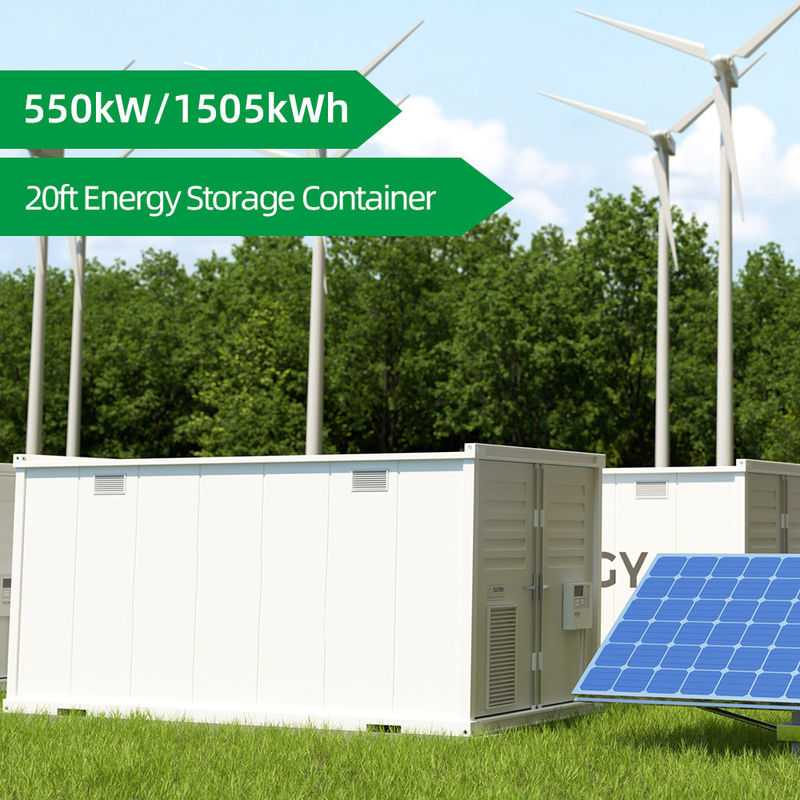

The Energy Storage Container is an industrial container energy storage solution that is designed for solar energy battery storage systems. ● Modular design, power can be flexibly configured on demand
● Using high-power battery modules, improve power density
● IP54 protection grade design, strong environmental applicability
● Support on-grid working modes, support off-grid working mode(need external isolation transformer), meet the needs of different scenarios
● Using own-developed mature BMS, with multiple protection functions, advanced active equalization algorithm, automatic calibration algorithm, etc.
● Complete life cycle monitoring and recording of the battery system
● Advanced temperature simulation technology to ensure the consistency of battery cell operating temperature and increase battery life
● The working status of the system can be viewed in real-time through the monitor platform webpage or mobile APP, and the fault warning information can get in advance
● The charging and discharging period can be set according to the needs, and the peak shaving and valley filling function can be completed, saving electricity bills
| Model:500kW/1505kWh | Specification | |
| AC Parameters | Rated power | 550kW |
| Max. power | 550kW | |
| Rated current | 720A | |
| AC Max. current | 792A | |
| THDi | <3% | |
| Rated voltage | 400VAC | |
| Voltage range | 360~440V (utility-interactive mode) | |
| Rated frequency | 50Hz/60Hz | |
| AC PF | 0.1~1 leading or lagging | |
| Isolation | Non-isolation(Isolation transformer is optional) | |
| Wire type | 3P4W+PE | |
| DC Parameters | Battery cell type | LFP, 3.2V/280Ah |
| Nominal energy (BOL) | 1505kWh | |
| Nominal voltage | 768VDC | |
| Battery voltage range | 648~840VDC | |
| Charging /Discharging mode | CP | |
| Other Parameters | Degree of protection | IP54 |
| Operation temperature | -20～+45℃ | |
| Storage temperature | -30～+50℃ | |
| Altitude | ≤2000m | |
| Relative humidity | 5%~95% (No condensing) | |
| Cooling | Independent temperature control,air- conditioning cooling | |
| Fire suppression system | FM-200 (Novec 1230 optional) | |
| Communication | MODBUS | |
| Dimension(W*D*H) | 6096*2438*2591mm | |
| Weight | 23T | |
| Certification | UL1973, IEC62619,UN38.3, UN3536 | |
YouNatural YNT20D Energy Storage Container – The Perfect Solution for Solar and Renewable Energy Storage
YouNatural YNT20D Energy Storage Container is the perfect choice for solar and renewable energy storage applications. The container is made of sturdy and durable material, certified with UL1973, IEC62619, UN38.3, and UN3536, and it has an IP54 protection value. It is designed to offer reliable energy storage and allow you to take advantage of the energy generated from renewable sources such as solar, wind, and geothermal. Moreover, it is equipped with a dry pipe fire extinguishing system and a rated output power of 550kW. The container also offers excellent performance with a weight of 23T.
YouNatural Energy Storage Container is perfect for a wide range of applications, including residential, commercial, and industrial. It is available in a variety of sizes, with a minimum order quantity of one. The price is negotiable, and delivery time and payment terms can also be discussed.
Brand Name: YouNatural
Model Number: YNT20D
Place of Origin: CHINA
Certification: UL1973, IEC62619,UN38.3, UN3536
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: Negotiation
Payment Terms: L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, MoneyGram
EMS management system: Yes
Battery cell type: LFP, 3.2V/280Ah
YouNatural's Energy Storage Container is an ideal container battery for ess energy storage system.
At Energy Storage Container, we provide several levels of support and services to our customers. Our technical support team is available to help you with any questions or concerns you may have about our products. We also provide a variety of services to help you get the most out of your Energy Storage Container.
If you have any questions or need help troubleshooting your Energy Storage Container, our technical support team is available to assist you. Our team is available 24/7 via email, phone, or online chat. We can provide you with all the information you need to get your Energy Storage Container up and running.
We also offer training services to help you get the most out of your Energy Storage Container. Our training courses are designed to help you master the features and functions of your Energy Storage Container, so you can get the most out of your investment. We also provide custom training courses tailored to your specific needs.
Brand Name: YouNatural
Model Number: YNT
Place of Origin: CHINA
Certification: UL1973, IEC62619,UN38.3, UN3536
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: Negotiation
Payment Terms: L/C, D/A, D/A, D/P, T/T, Western Union, Western Union, MoneyGram
