Place of Origin:
CHINA
Brand Name:
YouNatural
Certification:
UL1973, IEC62619,UN38.3, UN3536
Model Number:
YNT20ft
Contact Us
Video
Video

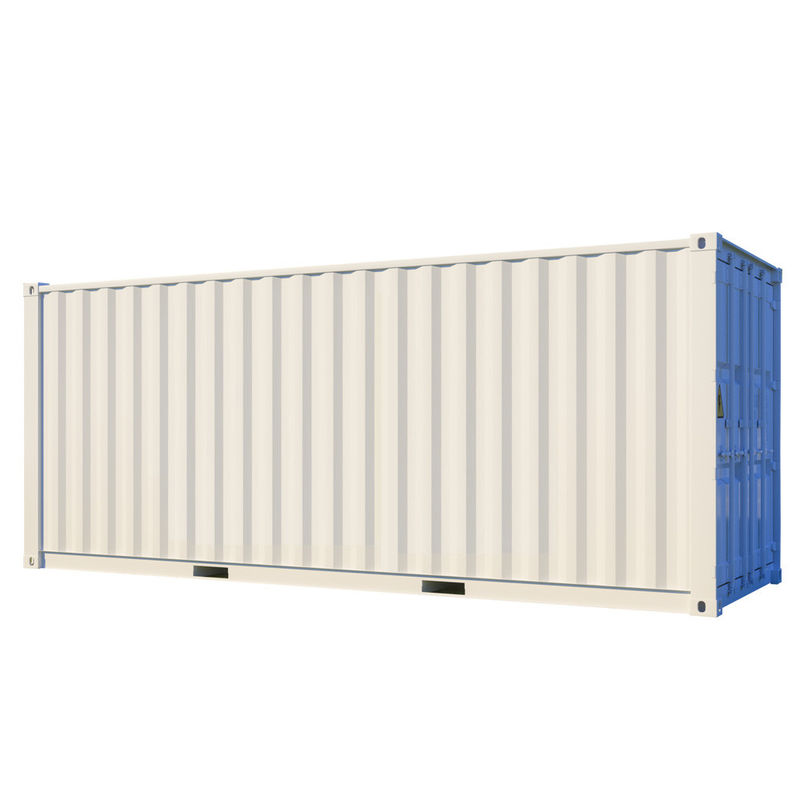

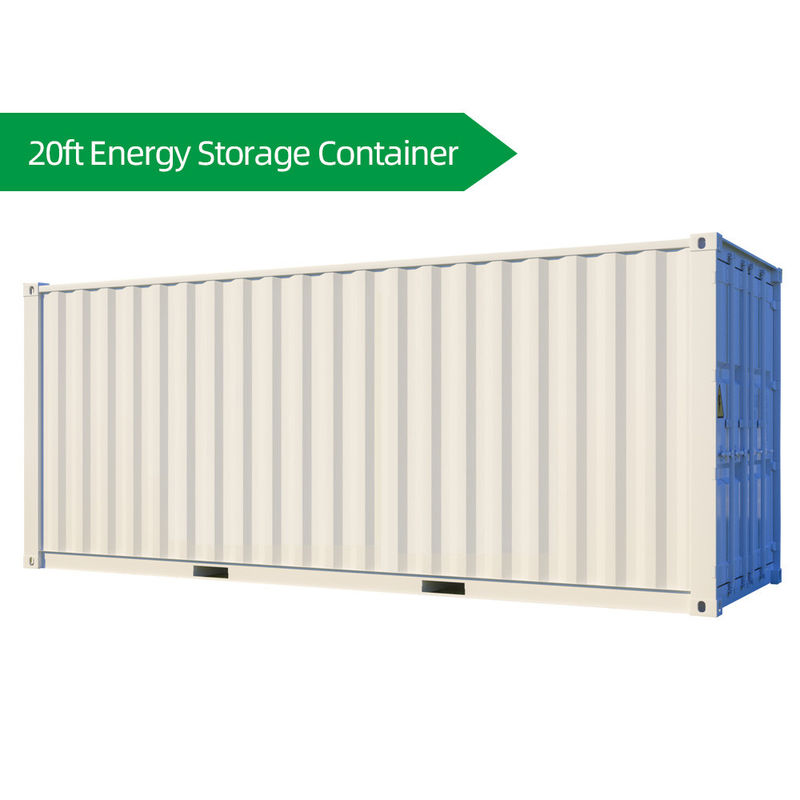

POWEROAD CENTRIC-A 20 is a series of energy storage solutions designed in a 20ft container, for MW level and above, with a voltage platform of DC1500V. It is a high-safety, high-reliability, and standardized air-cooling energy storage product. The standardized design allows for shortening the delivery time. The system is pre-assembled and pre-commissioning before shipping, which will greatly reduce the time of on-site commissioning. The system is UN3536 certificated, so the system can be transported as an entire container, which allows for reducing the on-site installation time.
● Modular design, power can be flexibly configured on demand
● Using high-power battery modules, improve power density
● IP54 protection grade design, strong environmental applicability
● Support on-grid working modes, support off-grid working mode(need external isolation transformer), meet the needs of different scenarios
● Using own-developed mature BMS, with multiple protection functions, advanced active equalization algorithm, automatic calibration algorithm, etc.
● Complete life cycle monitoring and recording of the battery system
● Advanced temperature simulation technology to ensure the consistency of battery cell operating temperature and increase battery life
● The working status of the system can be viewed in real-time through the monitor platform webpage or mobile APP, and the fault warning information can get in advance
● The charging and discharging period can be set according to the needs, and the peak shaving and valley filling function can be completed, saving electricity bills
| Items | |
| Rated Voltage | 1305.6 V |
| Voltage Range | 1101.6 V ~ 1468.8 V |
| Rated Capacity | 1960 Ah |
| Rated Energy | 2.56 MWh |
| Charge/Discharge Rate | 0.5 C |
| Cooling Method | Air cooling |
| Ambient Temperature Range | -20 ~ 45 ℃ |
| Storage Temperature Range | -30 ~ 55 ℃ |
| Relative Humidity | 5%~95% (No condensing) |
| Altitude | ≤ 2000m |
| Dimensions | 6058 x 2438 x 2896 mm |
| Weight | 32 t |
YouNatural YNT20ft Container Energy Storage Systems are designed to provide reliable and efficient energy storage solutions in industrial and commercial settings. Certified by UL1973, IEC62619, UN38.3, and UN3536, these systems are suitable for a wide range of applications. With a minimum order of 1 set, these systems are available at competitive prices, and can be delivered in a timely manner. Payment terms include L/C, D/A, D/A, D/P, T/T, Western Union, MoneyGram, and other options. The systems can be supplied up to 500 sets per month. YouNatural YNT20ft Container Energy Storage Systems are ideal for industrial container energy storage, Container Energy Storage Systems, power storage container energy storage systems, and smart container energy storage systems.
We aim to provide the best possible technical support and service for our Energy Storage Container. Our team of engineers and technicians are available 24/7 to address any of your concerns and answer any questions you may have. Our goal is to ensure your satisfaction with our product.
Our technical support team is available to answer any questions you may have about the Energy Storage Container. We can provide advice on installation, operation, and maintenance of the product. In addition, we can provide troubleshooting assistance for any technical problems you encounter.
We also offer service for the Energy Storage Container. Our team of experienced technicians can provide installation, maintenance, and repair services to ensure that your product is running smoothly and safely. We can also provide upgrades to the product, such as software or hardware updates.
