Place of Origin:
CHINA
Brand Name:
YouNatural
Certification:
UL1973, IEC62619,UN38.3, UN3536
Model Number:
YNTYNT500-3802088EC
Contact Us

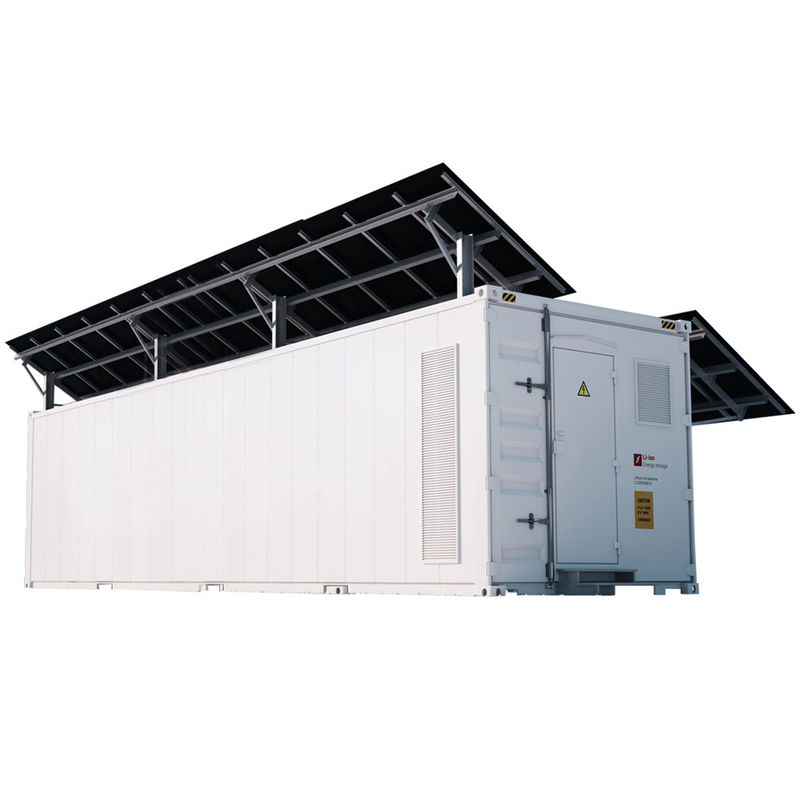

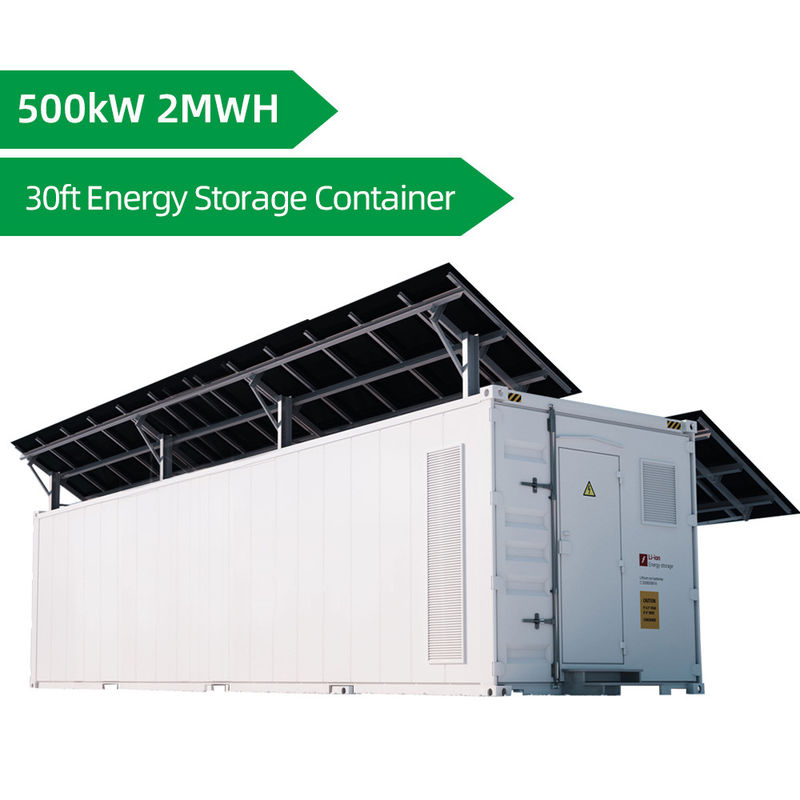

Introducing the revolutionary Energy Storage Container, a renewable energy storage solution that allows you to store and manage your energy efficiently and easily. Our container ESS features a 3W+N+PE AC pattern and an EMS management system, providing you with the highest performance and safety standards for all your energy storage needs. It has a robust working temperature of -30 to 55℃ and a dimension of 9000+2400*2900(30ft). Additionally, our container ESS is equipped with a remote control feature for even more convenience. With a container ESS, you can enjoy the benefits of solar energy battery storage container, giving you more flexibility and control over your energy resources.
| Model | YNT500-3802088EC |
| Rated output power | 500KW |
| PV | Yes |
| PV capacity | 550KW |
| Rated grid voltage | 380/400/415V |
| lnput voltage range | 320~460VAc |
| Output voltage range | 380/400/415VAC |
| Frequency | 50/60Hz |
| AC pattern | 3W+N+PE |
| Grid switching time | <20ms |
| System voltage | 768 |
| Battery module model | 51.2V340Ah |
| Battery cluster capacity | 261 |
| No.of paraleled clusters | 8 |
| No. of cycles | >4000 |
| EMS | Yes |
| Fire alarm | Yes |
| Fire extinguishing | Yes |
| HVAC | Yes |
| Access control | Yes |
| Remote contrdl | Yes |
| Peak-valley calculation | Yes |
| Utility Grid Connect | Yes |
| Communication | CAN,RS485 |
| Protection value | IP54 |
| Pcs unit coolng | Forced air |
| Working temperature | -30~55℃ |
| Maintenance | External maintenance |
| Dimension | 9000+2400*2900 (30ft) |
| Weight MT | 26ton |
YouNatural's YNT Container Energy Storage System is a power storage container energy storage system designed for Industrial Commercial ESS. It features high safety, high efficiency and long life with hot-swap, and it is equipped with No.of paraleled clusters up to 8, HVAC, CAN/RS485 communication, and dry pipe fire extinguishing. It can do Peak-valley calculation and has a minimum order quantity of 1 with a price negotiable, and a supply ability of 500 Set/Sets per Month. The product is certified by UL1973, IEC62619, UN38.3 and UN3536, and it supports payment with L/C, D/A, D/P, T/T, Western Union, and .
We are committed to providing our customers with the highest level of technical support and service for Energy Storage Container. Our experienced team of customer service professionals is available 24 hours a day, 7 days a week to help our customers with any technical issues they may have.
We provide comprehensive technical support and service for Energy Storage Container, including but not limited to:
If you need help or assistance with your Energy Storage Container, please contact us at any time.
