Place of Origin:
China
Brand Name:
YouNatural
Certification:
IEC，UL，CE，UN39.3，UN3536，IP54
Model Number:
30kW55kWh
Contact Us

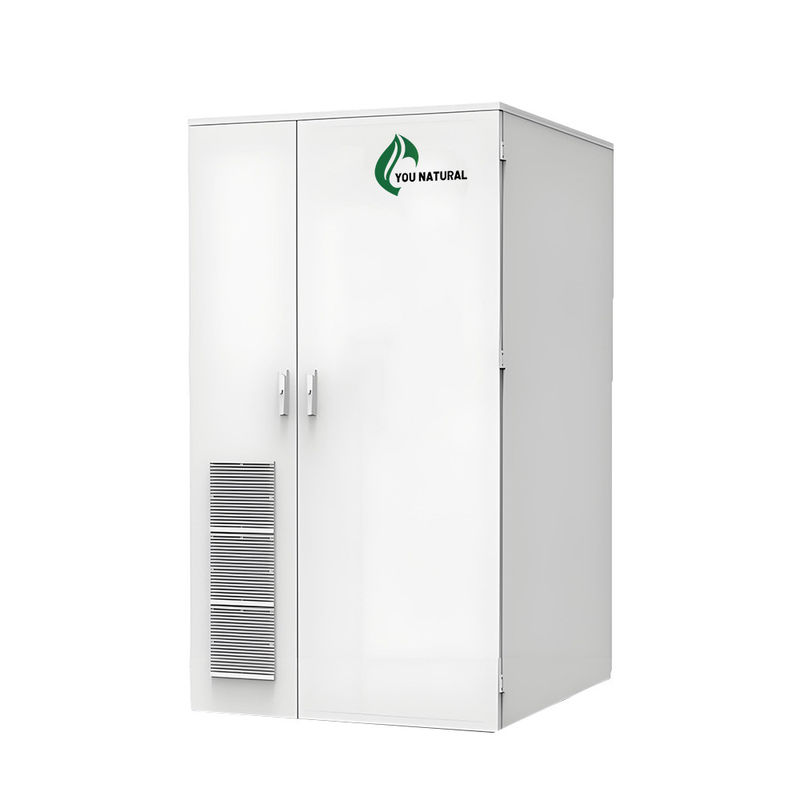

The lithium battery storage cabinet features a powerful 1P24S/9.126kWVh battery pack that can store and distribute energy efficiently. This battery pack is specially designed to provide long-lasting and reliable backup power, ensuring that your critical applications remain operational even during power outages.
Our lithium battery storage cabinett is certified by various regulatory bodies, including EC62619, IEC63056, IEC62477-1, IEC60730-1, EN61000-6-2/ -4. This ensures that our product meets the highest quality and safety standards, giving you peace of mind knowing that your investment is well-protected.
The lithium battery storage cabinet is a heavy-duty product with a weight of 1.1t. This sturdy construction ensures that the cabinet can withstand harsh weather conditions, making it suitable for outdoor installation. The cabinet's dimensions of 1220x1145x1420mm provide ample space for the battery pack, ensuring that it is well-protected while also making it easy to install and access.
Whether you need reliable backup power for your home or your business, the Energy Storage Cabinet is an ideal option. With its powerful battery pack, robust construction, and high-quality certifications, this Power Backup Cabinet provides a reliable and efficient energy storage solution for all your needs.
The lithium battery storage cabinet is designed to support parallelization of up to 10 units, making it versatile enough to meet a wide range of capacity needs. Whether it is peak shaving, new energy access, EPS, or off-grid utilization, this system can handle it with ease. Additionally, seamless switching between on-grid and off-grid use gives businesses the flexibility they need to adapt to changing energy needs.
| Battery System Parameters | |
| Battery Cell | LFP 3.2V/120Ah |
| Battery Pack | 1P24S/9.126kWVh |
| Battery System | 1P144S/55kWh |
| Voltage Range | 403.2~518.4Vdc |
| Total Capacity | 55kWh |
| AC Side Parameters(grid-connected) | |
| Rated Power | 30kW(@50°C) |
| Maximum Output Power | 33kW(@45°C) |
| Rated Voltage | 400Vac(-15%~15%) |
| Rated Grid Frequency | 50/60Hz |
| Power Factor | 0.8 (lagging)~0.8 (leading) |
| THDI(%) | <3%(@rated power) |
| Power Supply | 3P+N+PE(optional) |
| AC Side Parameters (off-grid) | |
| Rated Output Power | 30kW |
| Rated Voltage | 400Vac(-15%~10%) |
| Rated Output Frequency | 50/60Hz |
| Overload Capacity | 110% 10min (45°C),120% 1min |
| System Efficiency | |
| Maximum Efficiency | >97% |
| Total System Efficiency | >87% |
| Charge/Discharge Rate | ≤0.5C,peak power (@1C,30s) |
| General Parameters | |
| Dimensions(WxDxH) | 1220x1145x1420mm |
| Weight | 1.1t |
| Incoming Line | Bottom incoming line |
| Operating Temperature | -30~55°C |
| Environment Humidity | 0~95% |
| Altitude | ≤2000m |
| Protection Class | IP54 |
| Communication | |
| Communication interface | RS485/Ethernet |
| Communication Protoco | Modbus-RTU/TCP |
| Display | TFT LCD&Touch |
| Support | Web |
| Certificate | |
| Battery | EC62619,IEC63056,IEC62477-1,IEC60730-1,EN61000-6-2/-4 |
| Grid-Connected | VDE-AR-N4105,CEI0-21,EN50549-10 |
The YouNatural lithium battery storage cabinet is equipped with LFP 3.2V/120Ah battery cells, ensuring that it has enough power to store and distribute energy. It has a storage temperature range of -30～+55℃, making it suitable for different environments. This lithium battery storage cabinet has a dimension of 1220x1145x1420mm and a weight of 1.1t.
If you're looking for a product that can help you store and distribute energy, the YouNatural lithium battery storage cabinet is perfect for you. It has a supply ability of 1 Set/Sets per Month, and its price, delivery time, and payment terms are negotiable. You can order a minimum of 1 set of the YouNatural lithium battery storage cabinett.
The YouNatural lithium battery storage cabinet is suitable for various occasions and scenarios. It can be used in residential areas, commercial buildings, industrial facilities, and even in remote areas where there is no access to the power grid. This electricity reserve cabinet is perfect for emergency situations, ensuring that you have access to electricity even when there is a power outage.
Overall, the YouNatural Energy Storage Cabinet is a reliable and efficient solution for energy storage and distribution needs. With its certifications, protection class, and battery cells, you can be assured that you're getting a high-quality product that can help you store and distribute energy efficiently.
Customize Your YouNatural Power Backup Cabinet
Originating from China, YouNatural's lithium battery storage cabinet is customizable to fit your specific needs.
Certified by IEC,UL,CE,UN39.3,UN3536,and IP54, this energy storage cabinet has a total capacity of 55kWh and utilizes LFP 3.2V/120Ah battery cells with certificates including EC62619, IEC63056, IEC62477-1, IEC60730-1, EN61000-6-2/ -4.
Protect your power supply with an IP54 protection class and communicate through RS485/Ethernet interfaces.
With a minimum order quantity of 1 and negotiable pricing and delivery time, payment terms including L/C, D/A, D/P, T/T, Western Union, and MoneyGram, and a supply ability of 1 Set/Sets per Month, customize your YouNatural energy storage cabinet to fit your exact specifications.
The lithium battery storage cabinet product Technical Support and Services include:
- Technical assistance for installation, use, and maintenance of the product.
- Troubleshooting support for any issues or problems that arise with the product.
- Repair and replacement services for any faulty or damaged components of the product.
- Upgrades and enhancements to the product's software and hardware as they become available.
- Access to online resources, such as user manuals, FAQs, and knowledge base articles, to help customers better understand and utilize the product.
- Training and educational services for customers and technicians to improve their understanding of the product and its capabilities.
energy storage cabinet(energy storage cabinet factory/energy storage cabinet manufacturer/energy storage cabinet wholesaler)
lithium battery energy storage cabinet
55kwh energy storage cabinet
outdoor lithium battery cabinet
lithium battery storage cabinet
outdoor battery cabinet
battery storage cabinet
cabinet bess solar battery energy storage system
Q1: What is the brand name of the energy storage cabinet?
A1: The brand name of the energy storage cabinet is YouNatural.
Q2: Where is the energy storage cabinet produced?
A2: The energy storage cabinet is produced in China.
Q3: What certifications does the energy storage cabinet have?
A3: The energy storage cabinet is certified with IEC, UL, CE, UN39.3, UN3536, and IP54.
Q4: What are the payment terms for ordering the energy storage cabinet?
A4: The payment terms for ordering the energy storage cabinet are L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
Q5: What is the supply ability of the energy storage cabinet?
A5: The supply ability of the energy storage cabinet is 1 set per month.
