Place of Origin:
China
Brand Name:
YouNatural
Certification:
IEC，UL，CE，UN39.3，UN3536，IP54
Model Number:
30kW55kWh
Contact Us

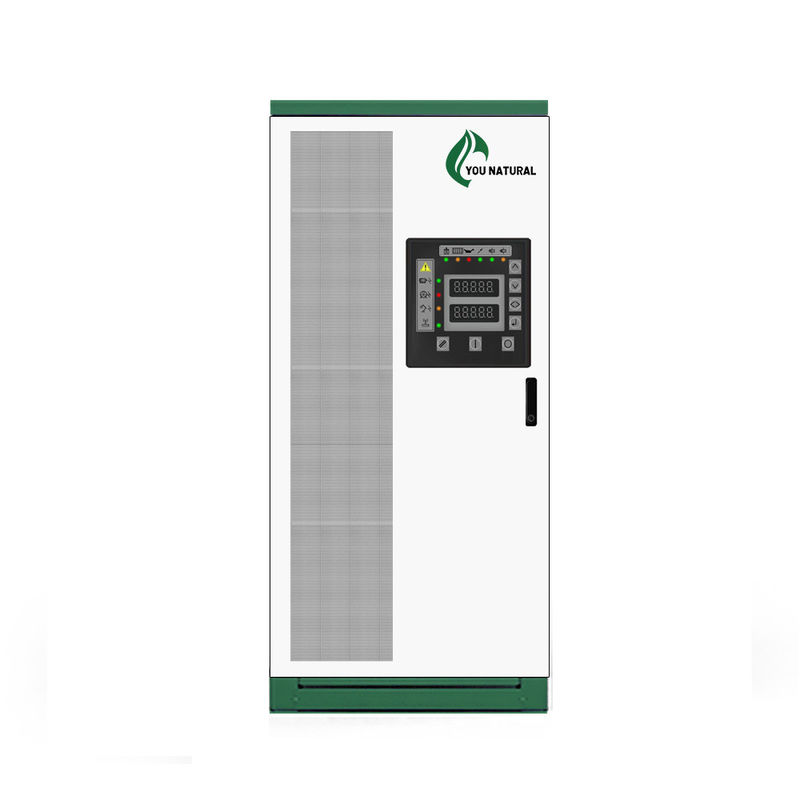

With a weight of 1.1t, the lithium battery storage cabinet(Energy Storage Cabinet) is a sturdy and durable option for your energy storage needs. The battery cell used in this product is LFP 3.2V/120Ah, which ensures a long lifespan and high energy density. This battery type is known for its safety and stability, making it a perfect fit for an energy storage cabinet.
The lithium battery storage cabinet(Energy Storage Cabinet) is designed to operate in a wide range of temperatures, with a storage temperature range of -30～+55℃. This ensures that the cabinet can function in different weather conditions, making it an excellent choice for outdoor use.
This Power Backup Cabinet is a cost-effective solution for those who want to reduce their electricity bills and become more self-sufficient. The lithium battery storage cabinet(Energy Storage Cabinet) is designed to store energy during off-peak hours when electricity rates are low and use it during peak hours when rates are high. This helps to reduce the cost of electricity and increase energy efficiency.
The lithium battery storage cabinet(Energy Storage Cabinet) is easy to install and operate. It comes with a user-friendly interface that allows users to monitor and control the energy storage system. The cabinet is also equipped with multiple safety features, such as over-temperature protection, over-voltage protection, and over-current protection, ensuring the safety of the users and the energy storage system.
In summary, the lithium battery storage cabinet(Energy Storage Cabinet) is a reliable and cost-effective solution for power backup needs. Its sturdy design, high energy density battery, wide temperature range, and user-friendly interface make it an excellent choice for homes, offices, and small businesses. If you're looking for a reliable and efficient energy storage system, the Energy Storage Cabinet is the perfect product for you.
It puts safety first and is equipped with in-cabinet constant temperature control and fire protection devices to double ensure the safety of the system and the surrounding environment. With these features, businesses can rest easy knowing that their energy storage solution is not only efficient, but also safe and reliable.
Another major feature of the its compatibility with LSHE Web, enabling intelligent operation and maintenance. This advanced technology enables remote monitoring and control, allowing businesses to optimize their energy storage systems anytime, anywhere.
| Battery System Parameters | |
| Battery Cell | LFP 3.2V/120Ah |
| Battery Pack | 1P24S/9.126kWVh |
| Battery System | 1P144S/55kWh |
| Voltage Range | 403.2~518.4Vdc |
| Total Capacity | 55kWh |
| AC Side Parameters(grid-connected) | |
| Rated Power | 30kW(@50°C) |
| Maximum Output Power | 33kW(@45°C) |
| Rated Voltage | 400Vac(-15%~15%) |
| Rated Grid Frequency | 50/60Hz |
| Power Factor | 0.8 (lagging)~0.8 (leading) |
| THDI(%) | <3%(@rated power) |
| Power Supply | 3P+N+PE(optional) |
| AC Side Parameters (off-grid) | |
| Rated Output Power | 30kW |
| Rated Voltage | 400Vac(-15%~10%) |
| Rated Output Frequency | 50/60Hz |
| Overload Capacity | 110% 10min (45°C),120% 1min |
| System Efficiency | |
| Maximum Efficiency | >97% |
| Total System Efficiency | >87% |
| Charge/Discharge Rate | ≤0.5C,peak power (@1C,30s) |
| General Parameters | |
| Dimensions(WxDxH) | 1220x1145x1420mm |
| Weight | 1.1t |
| Incoming Line | Bottom incoming line |
| Operating Temperature | -30~55°C |
| Environment Humidity | 0~95% |
| Altitude | ≤2000m |
| Protection Class | IP54 |
| Communication | |
| Communication interface | RS485/Ethernet |
| Communication Protoco | Modbus-RTU/TCP |
| Display | TFT LCD&Touch |
| Support | Web |
This lithium battery storage cabinet(Energy Storage Cabinet) is ideal for a range of occasions and scenarios. It can be used as an electricity reserve cabinet for homes, businesses, and public buildings, ensuring uninterrupted power supply during outages or emergencies. The cabinet's outdoor cabinet type energy storage system is perfect for outdoor events or activities that require power, such as concerts, festivals, and camping trips. The cabinet's communication interface is RS485/Ethernet, making it easy to integrate into existing systems.
The lithium battery storage cabinet(Energy Storage Cabinet) is equipped with LFP 3.2V/120Ah battery cells, ensuring long-lasting power and stability. The cabinet's dimensions are 1220x1145x1420mm, making it easy to install and transport. The cabinet's battery certification includes EC62619, IEC63056, IEC62477-1, IEC60730-1, and EN61000-6-2/ -4, ensuring that it meets the highest standards for battery safety and performance.
YouNatural offers customized product options for our outdoor cabinet type energy storage system, the Electricity Reserve Cabinet. Our cabinets are made in China and certified with IEC, UL, CE, UN39.3, UN3536, and IP54. The minimum order quantity is 1 and the price and delivery time are negotiable. We accept a variety of payment terms including L/C, D/A, D/P, T/T, Western Union, and MoneyGram. Our supply ability is 1 Set/Sets per Month. The storage temperature range is -30～+55℃ and our batteries are certified with EC62619, IEC63056, IEC62477-1, IEC60730-1, EN61000-6-2/-4. Our cabinets come with communication interfaces of RS485/Ethernet and have a voltage range of 403.2~518.4Vdc. The total capacity of our Power Reserve Cabinet is 55kWh.
Our Energy Storage Cabinet product comes with comprehensive technical support and services to ensure its optimal performance and longevity. Our team of experts is available to assist with any product-related questions or issues, including installation guidance, troubleshooting, and maintenance. We also offer extended warranty options and on-site repair services to minimize downtime and maximize productivity. Our commitment to customer satisfaction means that we are always striving to provide the highest level of support and service possible. Contact us today to learn more about how we can support your energy storage needs.
energy storage cabinet(energy storage cabinet factory/energy storage cabinet manufacturer/energy storage cabinet wholesaler)
lithium battery energy storage cabinet
55kwh energy storage cabinet
outdoor lithium battery cabinet
lithium battery storage cabinet
outdoor battery cabinet
battery storage cabinet
cabinet bess solar battery energy storage system
A: The brand name of this energy storage cabinet is YouNatural.
Q: Where is the energy storage cabinet made?
A: The energy storage cabinet is made in China.
Q: What certifications does this energy storage cabinet have?
A: This energy storage cabinet has the following certifications: IEC, UL, CE, UN39.3, UN3536, IP54.
Q: What is the minimum order quantity for this energy storage cabinet?
A: The minimum order quantity for this energy storage cabinet is 1.
Q: What are the available payment terms for this energy storage cabinet?
A: The available payment terms for this energy storage cabinet are L/C, D/A, D/P, T/T, Western Union, MoneyGram.
Q: What is the delivery time for this energy storage cabinet?
A: The delivery time for this energy storage cabinet is negotiable.
Q: What is the supply ability of this energy storage cabinet?
A: The supply ability of this energy storage cabinet is 1 Set/Sets per Month.
Q: Is the price of this energy storage cabinet negotiable?
A: Yes, the price of this energy storage cabinet is negotiable.
