Place of Origin:
China
Brand Name:
YouNatural
Certification:
IEC，UL，CE，UN39.3，UN3536，IP54
Model Number:
30kW 55kWh
Contact Us
The Energy Storage Cabinet has a communication interface of RS485 and Ethernet, making it easy to integrate into existing systems. The cabinet is certified with battery certificates such as EC62619, IEC63056, IEC62477-1, IEC60730-1, EN61000-6-2/ -4. These certifications ensure that the cabinet is safe, reliable, and meets international standards.
The Energy Storage Cabinet has a total capacity of 55kWh, making it suitable for both residential and commercial applications. The cabinet is built with high-quality LFP 3.2V/120Ah battery cells, ensuring long-lasting performance and durability.
The Energy Storage Cabinet has a storage temperature range of -30～+55℃. This wide range of temperature tolerance allows the cabinet to operate in various environments without compromising its performance.
The Energy Storage Cabinet is ideal for use in areas where there is a high demand for electricity, such as data centers, hospitals, and commercial buildings. It can also be used in residential applications to provide backup power during power outages.
Overall, the Energy Storage Cabinet is a reliable and efficient solution for energy storage and distribution. Its communication interface, battery certificates, total capacity, storage temperature, and battery cell quality make it an excellent choice for both residential and commercial applications.
| Battery Certificate: | EC62619, IEC63056, IEC62477-1, IEC60730-1, EN61000-6-2/-4 |

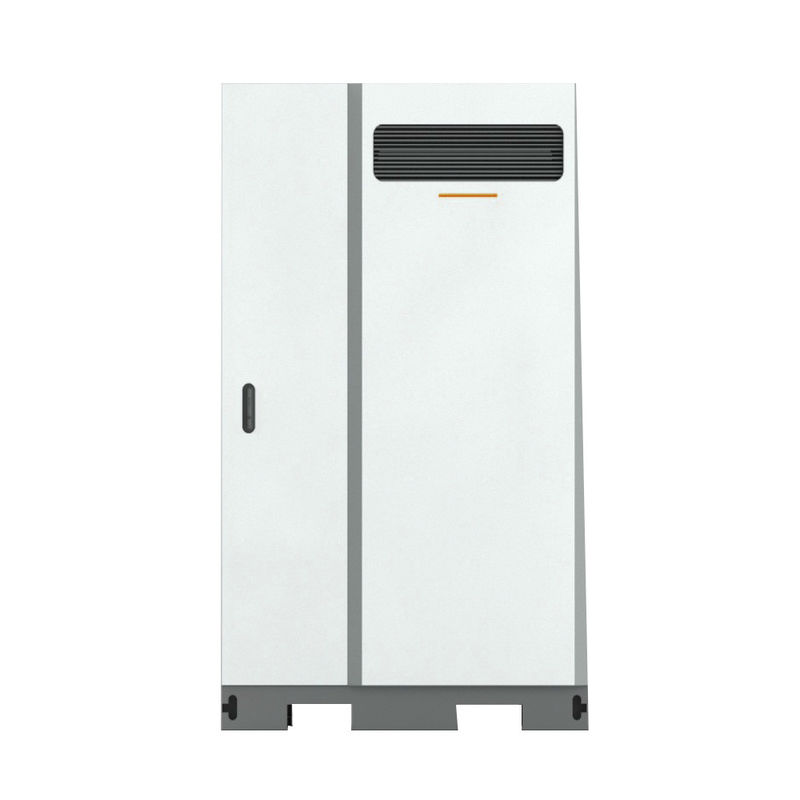

| Product Name: | Energy Storage Cabinet,lifepo4 battery cabinet with bms |
| Weight: | 1.1t |
| Communication interface: | RS485/Ethernet |
| Dimensions(WxDxH): | 1220x1145x1420mm |
| Protection Class: | IP54 |
| Total Capacity: | 55kWh |
| Battery System Parameters | |
| Battery Cell | LFP 3.2V/120Ah |
| Battery Pack | 1P24S/9.126kWVh |
| Battery System | 1P144S/55kWh |
| Voltage Range | 403.2~518.4Vdc |
| Total Capacity | 55kWh |
| AC Side Parameters(grid-connected) | |
| Rated Power | 30kW(@50°C) |
| Maximum Output Power | 33kW(@45°C) |
| Rated Voltage | 400Vac(-15%~15%) |
| Rated Grid Frequency | 50/60Hz |
| Power Factor | 0.8 (lagging)~0.8 (leading) |
| THDI(%) | <3%(@rated power) |
| Power Supply | 3P+N+PE(optional) |
This table describes technical parameters of the Energy Storage Cabinet, also known as energy storage and distribution cabinet or electricity reserve cabinet.
The lifepo4 battery cabinet with bms(Energy Storage Cabinet )is suitable for a range of applications and scenarios, including residential, commercial, and industrial settings. It is ideal for use in areas with intermittent power supply or where power is not available at all. The Energy Storage Cabinet can store energy during the day when solar panels are producing energy and then release it at night when it is needed. This makes it an excellent choice for off-grid homes, cabins, and remote locations.
The Energy Storage Cabinet is also ideal for use in commercial and industrial settings. It can be used to store energy during off-peak hours when energy prices are lower and then release it during peak hours when prices are higher. This can help businesses save money on energy costs and reduce their carbon footprint.
The lifepo4 battery cabinet with bms(Energy Storage Cabinet ) is easy to install and operate, and it comes with a battery system consisting of 1P144S/55kWh. The battery cell is made of LFP 3.2V/120Ah, which ensures that it is durable and long-lasting. The Energy Storage Cabinet has a storage temperature of -30～+55℃, which makes it suitable for use in a range of environments.
YouNatural's lifepo4 battery cabinet with bms(Energy Storage Cabinet ) has a weight of 1.1t and a supply ability of 1 Set/Sets per Month. The minimum order quantity and delivery time are negotiable, and payment terms include L/C, D/A, D/P, T/T, Western Union, and MoneyGram. Whether you're looking to store energy for your home, your business, or your industrial facility, the lifepo4 battery cabinet with bms(Energy Storage Cabinet ) from YouNatural is an excellent choice.
Customize your Energy Storage Cabinet with YouNatural. Our outdoor cabinet type energy storage system is designed to meet your specific needs.
Brand Name: YouNatural
Place of Origin: China
Certification: IEC, UL, CE, UN39.3, UN3536, IP54
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: Negotiation
Payment Terms: L/C, D/A, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 Set/Sets per Month
Battery System: 1P144S/55kWh
Communication interface: RS485/Ethernet
Battery Pack: 1P24S/9.126kWVh
Voltage Range: 403.2~518.4Vdc
Weight: 1.1t
Our energy storage and distribution cabinet is the perfect solution for storing and distributing energy in a wide range of applications. With customizable options, you can tailor your Energy Storage Cabinet to your specific needs.
The lifepo4 battery cabinet with bms(Energy Storage Cabinet ) is a highly advanced and sophisticated product that requires expert technical support and services to ensure optimal performance and efficiency. Our team of experienced and certified technicians is available to provide comprehensive support and services throughout the lifecycle of the product, including:
We understand the critical role that the Energy Storage Cabinet plays in your operations, and we are committed to providing prompt and effective support and services to minimize downtime and ensure maximum uptime. Contact us today to learn more about our technical support and services for the Energy Storage Cabinet.
energy storage cabinet(energy storage cabinet factory/energy storage cabinet manufacturer/energy storage cabinet wholesaler)Q1: What is the brand name of this energy storage cabinet?
A1: The brand name of this energy storage cabinet is YouNatural.
Q2: Where is this energy storage cabinet manufactured?
A2: This energy storage cabinet is manufactured in China.
Q3: What certifications does this energy storage cabinet have?
A3: This energy storage cabinet has certifications from IEC, UL, CE, UN39.3, UN3536, and IP54.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity for this product is 1.
Q5: What are the payment terms and delivery time for this product?
A5: The payment terms and delivery time for this product are negotiable. We accept L/C, D/A, D/P, T/T, Western Union, and MoneyGram. Our supply ability is 1 set per month.
