Place of Origin:
China
Brand Name:
YouNatural
Certification:
IEC，UL，CE，UN39.3，UN3536，IP54
Contact Us

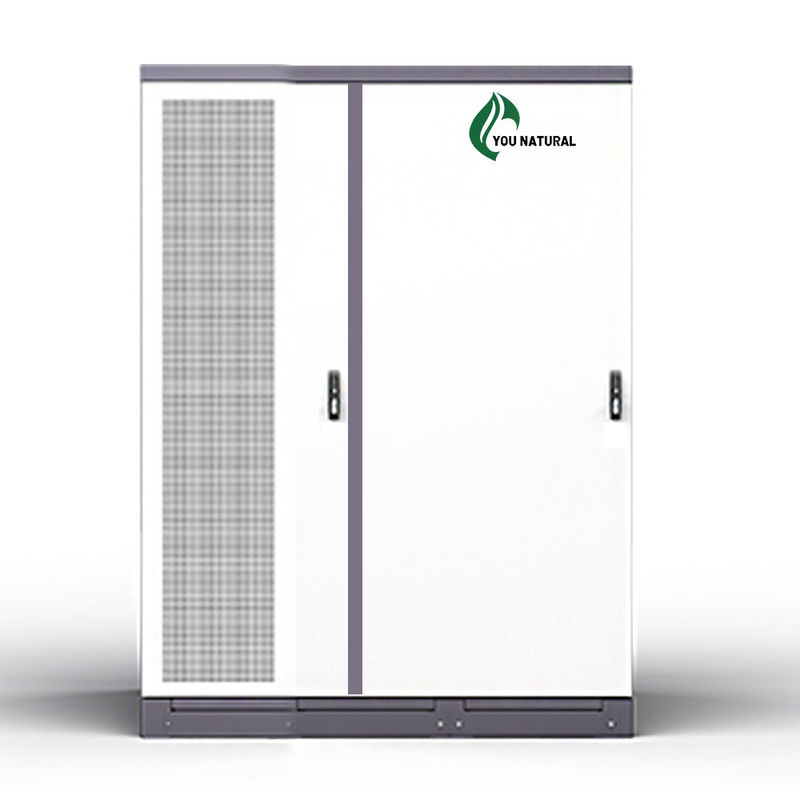

The lithium battery storage cabinet(Energy Storage Cabinet) can hold up to 55kWh of electricity, making it a reliable source of power in case of emergencies or power outages. Its weight of 1.1t ensures that it is sturdy and durable, while its communication interface of RS485/Ethernet allows for easy monitoring and control of the cabinet's energy levels.
Whether you need a reserve of energy for your home or your business, the lithium battery storage cabinet(Energy Storage Cabinet) is the perfect solution. Its storage temperature of -30～+55℃ ensures that it can withstand extreme weather conditions, making it ideal for outdoor use.
The lithium battery storage cabinet(Energy Storage Cabinet) is also known as the Electricity Reserve Cabinet. It is designed to store electricity and provide an uninterrupted power supply in case of power outages or emergencies. It is also an eco-friendly alternative to traditional sources of energy, making it a great investment for those who want to reduce their carbon footprint.
Overall, the lithium battery storage cabinet(Energy Storage Cabinet) is a reliable and durable solution for storing electricity. Its outdoor cabinet type energy storage system ensures that it can withstand extreme weather conditions, while its communication interface of RS485/Ethernet allows for easy monitoring and control of the cabinet's energy levels. If you're looking for a reliable source of power in case of emergencies or power outages, the lithium battery storage cabinet(Energy Storage Cabinet)is the perfect solution.
● Equipped with PACK level firefighting, cabin level firefighting and water firefighting (optional)| Product Name | lithium battery storage cabinet(Energy Storage Cabinet) |
| Battery Pack | 1P24S/9.126kWVh |
| Battery Certificate | EC62619, IEC63056, IEC62477-1, IEC60730-1, EN61000-6-2/ -4 |
| Battery Cell | LFP 3.2V/120Ah |
| Total Capacity | 55kWh |
| Communication interface | RS485/Ethernet |
| Dimensions(WxDxH) | 1220x1145x1420mm |
| Protection Class | IP54 |
| Storage temperature | -30～+55℃ |
| Battery System | 1P144S/55kWh |
| AC Side Parameters(grid-connected) | |
| Rated Power | 30kW(@50°C) |
| Maximum Output Power | 33kW(@45°C) |
| Rated Voltage | 400Vac(-15%~15%) |
| Rated Grid Frequency | 50/60Hz |
| Power Factor | 0.8 (lagging)~0.8 (leading) |
| THDI(%) | <3%(@rated power) |
| Power Supply | 3P+N+PE(optional) |
| AC Side Parameters (off-grid) | |
| Rated Output Power | 30kW |
| Rated Voltage | 400Vac(-15%~10%) |
| Rated Output Frequency | 50/60Hz |
| Overload Capacity | 110% 10min (45°C),120% 1min |
| System Efficiency | |
| Maximum Efficiency | >97% |
| Total System Efficiency | >87% |
| Charge/Discharge Rate | ≤0.5C,peak power (@1C,30s) |
The YouNatural lithium battery storage cabinet(Energy Storage Cabinet) is manufactured in China and comes with certifications such as IEC, UL, CE, UN39.3, UN3536, and IP54. This makes it a reliable and safe option for energy storage. The minimum order quantity for this product is 1, and the price, delivery time, and payment terms can be negotiated based on your requirements.
This lithium battery storage cabinet(Energy Storage Cabinet) has a voltage range of 403.2~518.4Vdc and dimensions of 1220x1145x1420mm. It comes with a communication interface of RS485/Ethernet, making it easy to connect to other systems. The battery system is 1P144S/55kWh, and the battery pack is 1P24S/9.126kWVh, making it efficient and reliable for all your energy storage needs.
This Power Storage Cabinet is versatile and can be used in a variety of occasions and scenarios. Whether you need it for residential or commercial purposes, it is a great option for storing excess energy. It is also ideal for outdoor cabinet type energy storage systems, making it suitable for use in outdoor environments.
Overall, the YouNatural lithium battery storage cabinet(Energy Storage Cabinet) is a reliable and efficient option for all your energy storage needs. With a supply ability of 1 Set/Sets per Month, it is readily available for purchase. Contact us now to negotiate the price, delivery time, and payment terms.
Brand Name: YouNatural
Place of Origin: China
Certification: IEC,UL,CE,UN39.3,UN3536,IP54
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 Set/Sets per Month
Storage temperature: -30～+55℃
Voltage Range: 403.2~518.4Vdc
Total Capacity: 55kWh
Communication interface: RS485/Ethernet
Battery Certificate: EC62619, IEC63056, IEC62477-1, IEC60730-1, EN61000-6-2/ -4
Features: battery solar energy storage cabinet battery, outdoor cabinet type energy storage system, energy storage and distribution cabinet
energy storage cabinet(energy storage cabinet factory/energy storage cabinet manufacturer/energy storage cabinet wholesaler)Our Energy Storage Cabinet product is backed by comprehensive technical support and services to ensure that our customers receive the best experience possible. Our team of experts is available to provide assistance with installation, maintenance, and troubleshooting of the Energy Storage Cabinet. We also offer training and consultation services to help our customers optimize their use of the product and achieve their desired outcomes. Our commitment to customer satisfaction means that we are always available to answer questions and provide solutions to any issues that may arise.
Q1: What is the brand name of the energy storage cabinet?
A1: The brand name of the energy storage cabinet is YouNatural.
Q2: Where is the energy storage cabinet manufactured?
A2: The energy storage cabinet is manufactured in China.
Q3: What certifications does the energy storage cabinet have?
A3: The energy storage cabinet is certified by IEC, UL, CE, UN39.3, UN3536, and has an IP54 rating.
Q4: What is the minimum order quantity for the energy storage cabinet?
A4: The minimum order quantity for the energy storage cabinet is 1.
Q5: What are the payment terms for the energy storage cabinet?
A5: The payment terms for the energy storage cabinet are L/C, D/A, D/P, T/T, Western Union, and MoneyGram. Delivery time and price are negotiable, and the supply ability is 1 set per month.
